Remote Controlled

Flump Dredges

Remote Controlled, Cabled Dredges

Crisafulli manufactures four standard hydraulic dredge models of its portable remote controlled, automated electric powered FLUMP (floating lagoon pumper) series (3-inch stand duty, 3-inch severe duty, and 4-inch severe duty), and the diesel powered FLUMP, the RDF-75. Crisafulli will custom engineer each of its standard models to meet customers' specifications.

Crisafulli dredges use horizontal augers. FLUMP dredges operate in a cabled environment, are remote controlled, and can be partially or fully automated.

Customers use our equipment to dredge biosolids and residuals from municipal water and wastewater lagoons; dredge industrial lagoons of waste, mine tailings, sediment, or slurries; remove settled solids from ponds or lagoons without draining the ponds or taking ponds out of service; implement or manage conservation projects, including maintenance of small ponds.

  • Flump
  • RDF

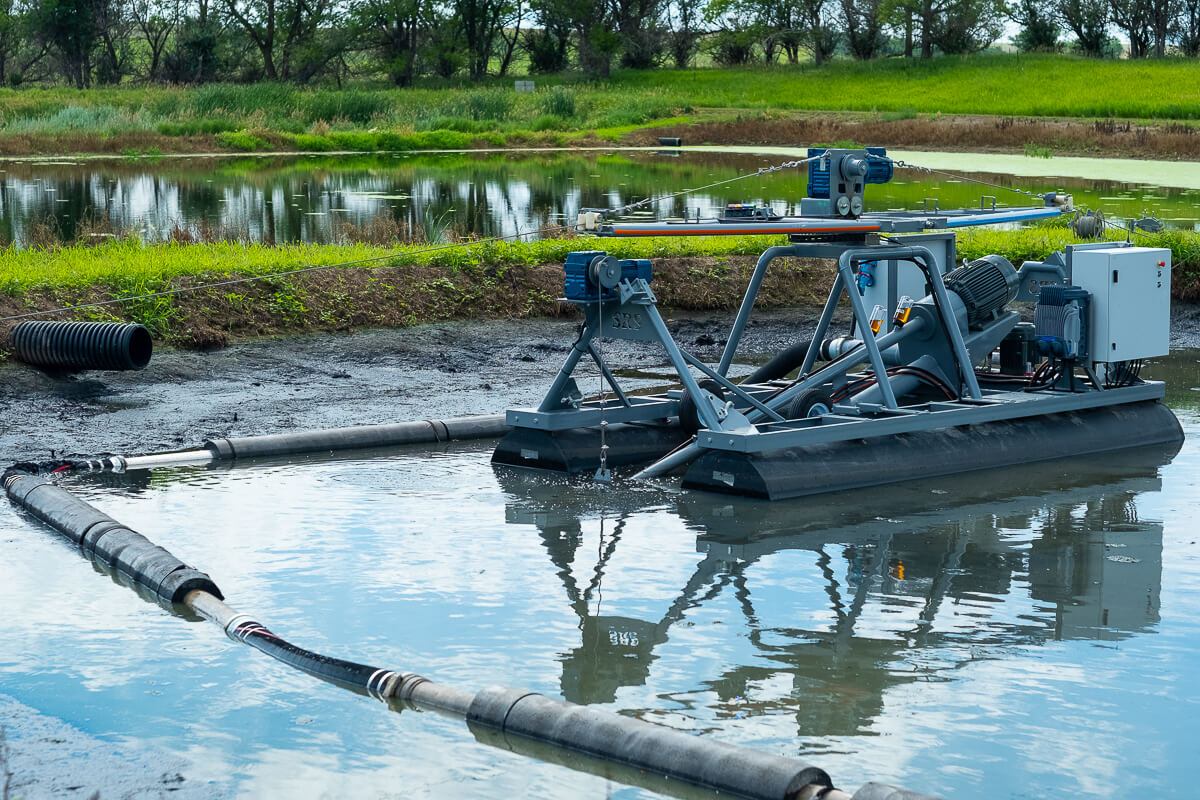

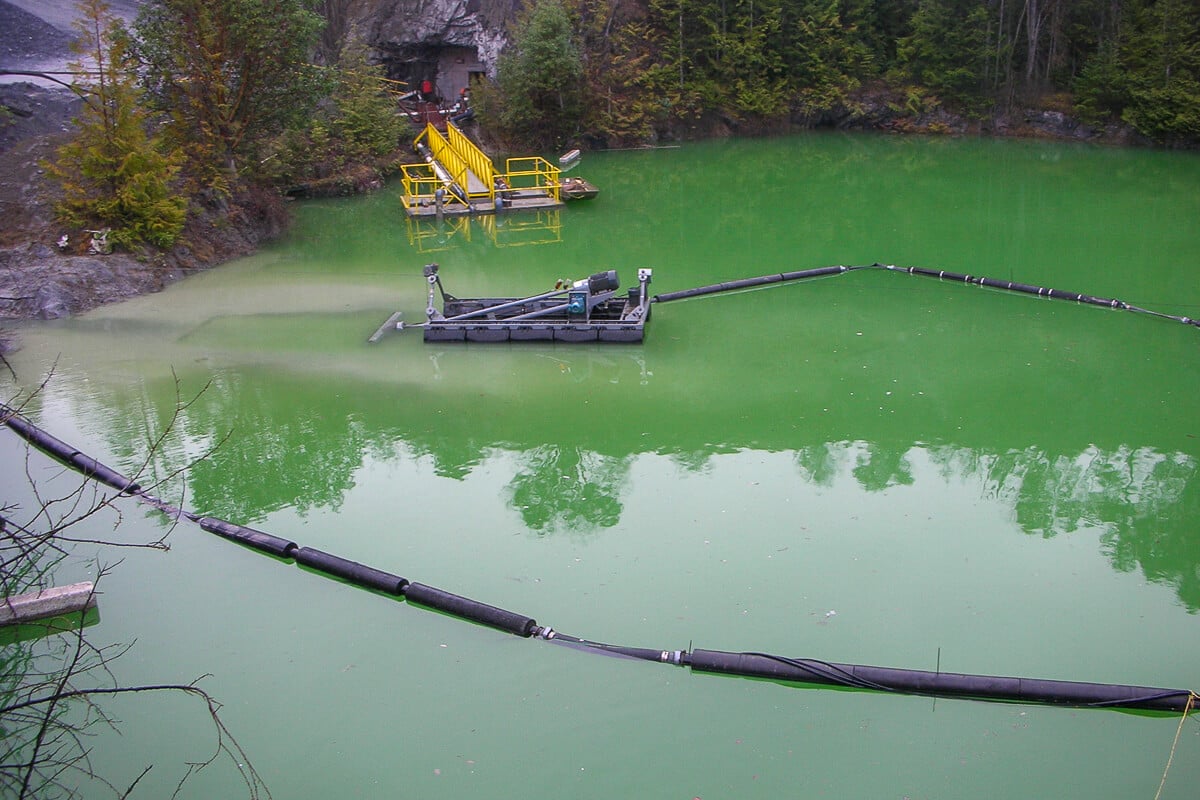

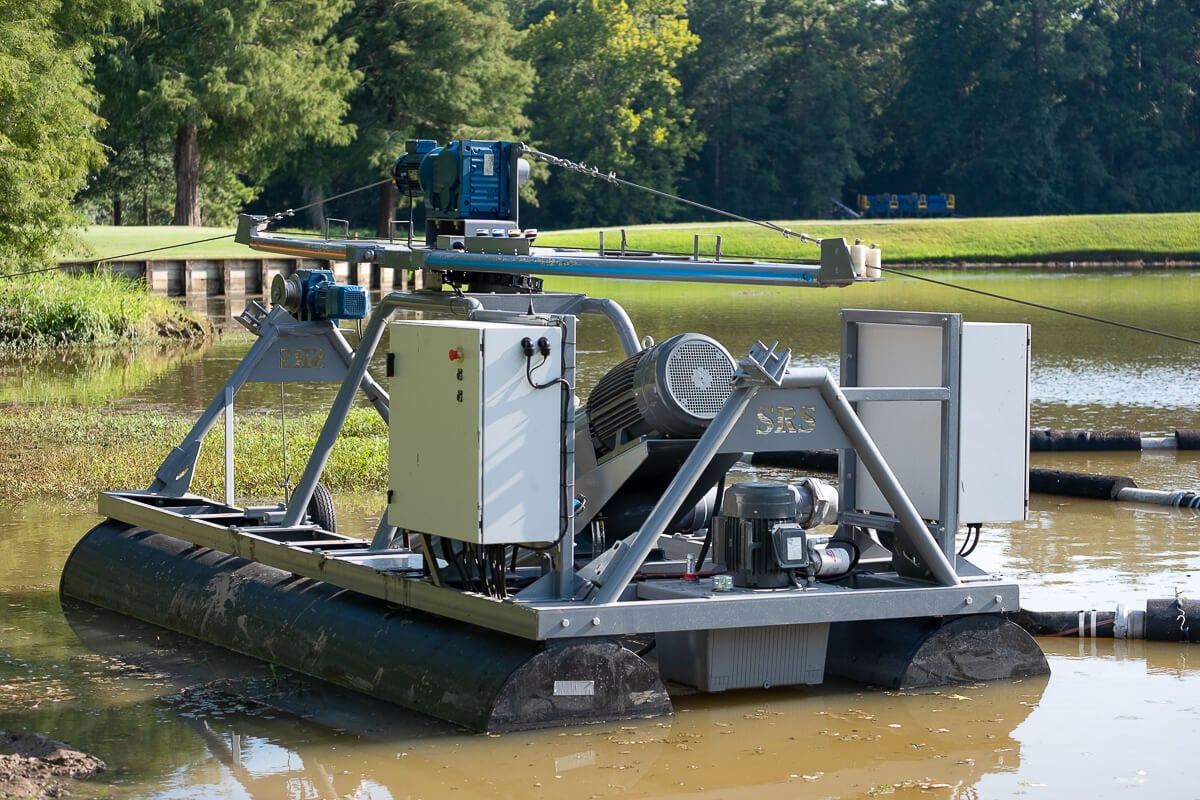

The FLUMP (floating lagoon pumper) solves industrial and municipal environmental problems in a low-cost, efficient manner. The FLUMP removes settled wastes and other by-products from settling ponds or lagoons, built to prevent wastes from leaching into the water-table.

Built tough to ensure dependable service in harsh environments, Crisafulli FLUMPs are simple to operate, and easy to transport. Crisafulli’s specialists have solved liquid waste problems for more than thirty years. Call us for standard applications -- or when no standard product will solve your problem. We will work with you to produce a Crisafulli Sludge Removal System that meets the specific requirements of your application.

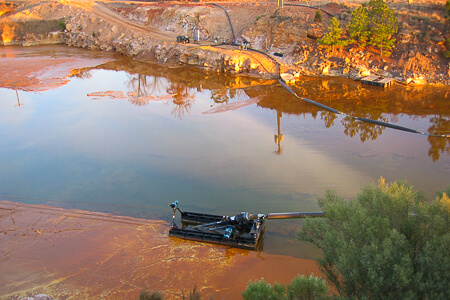

Use the FLUMP to clean your pond or lagoon of sludge, sediment, biosolids or residuals.

Key Benefits of Flump Ownership

  • The FLUMP enables you to dramatically cut your sludge management costs
  • Owning a FLUMP puts you in control of your dredging schedule
  • The dredge operator isn’t exposed to potentially hazardous dredged materials
  • Engineered for performance and quiet operation
  • High solids dredging performance with minimum turbidity
  • Easily transported to multiple sites
  • Our traverse system allows a single operator to change the dredges pond position in under twenty minutes.
  • FLUMPs now come with a high speed reverse, reducing the downtime between passes
  • Simple to maintain
  • Reliable and manufactured to last
  • Superior after-sale support from Crisafulli worldwide

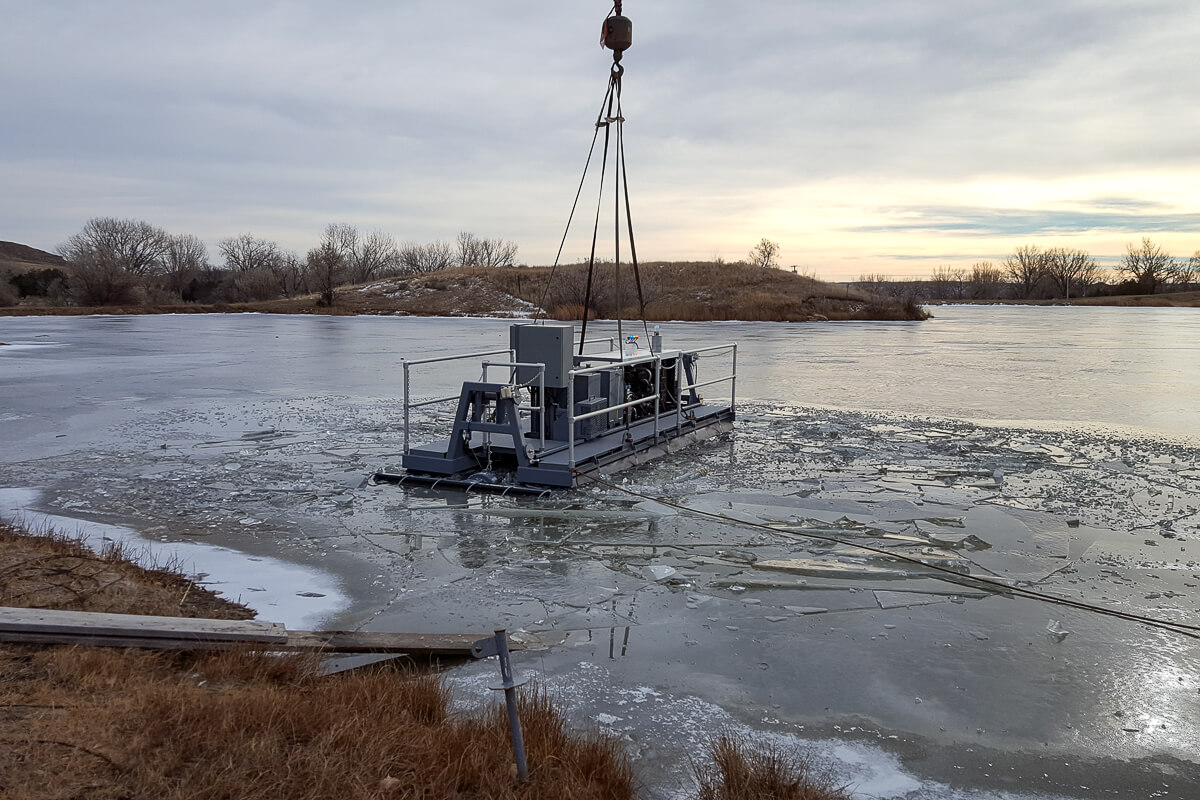

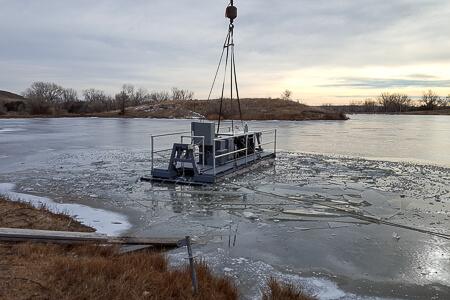

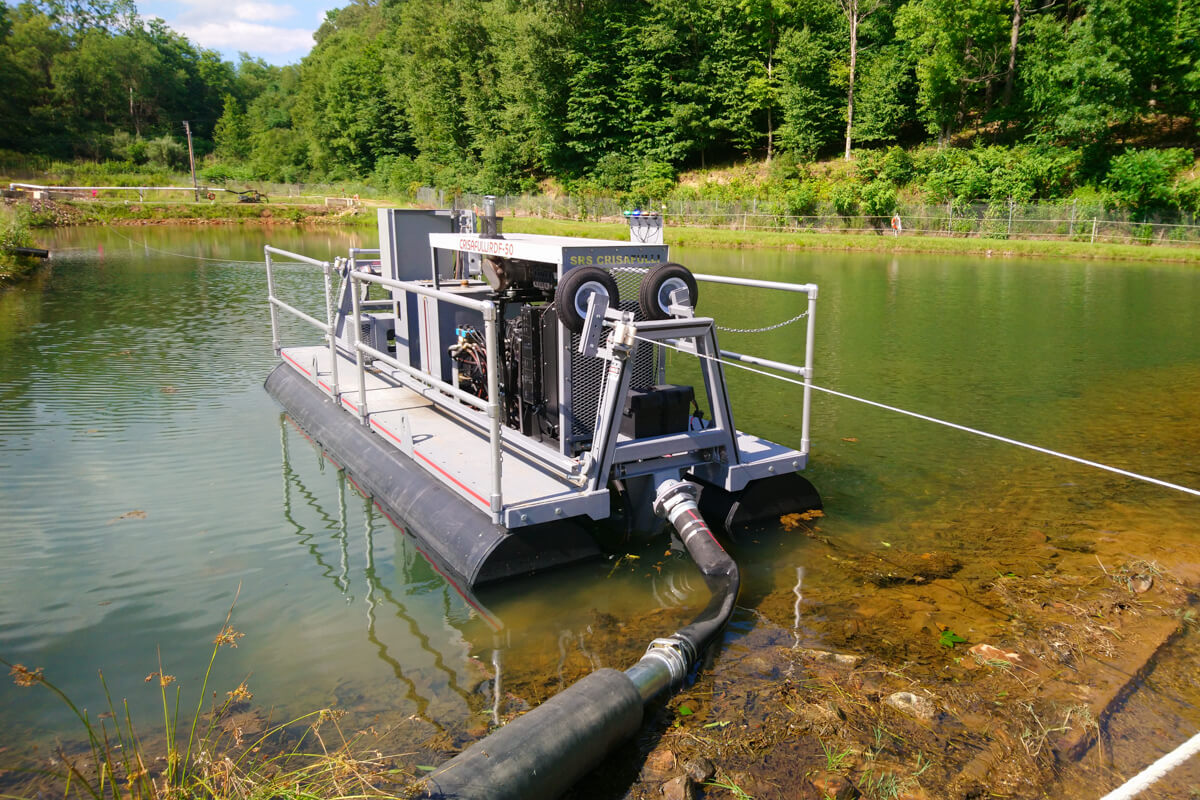

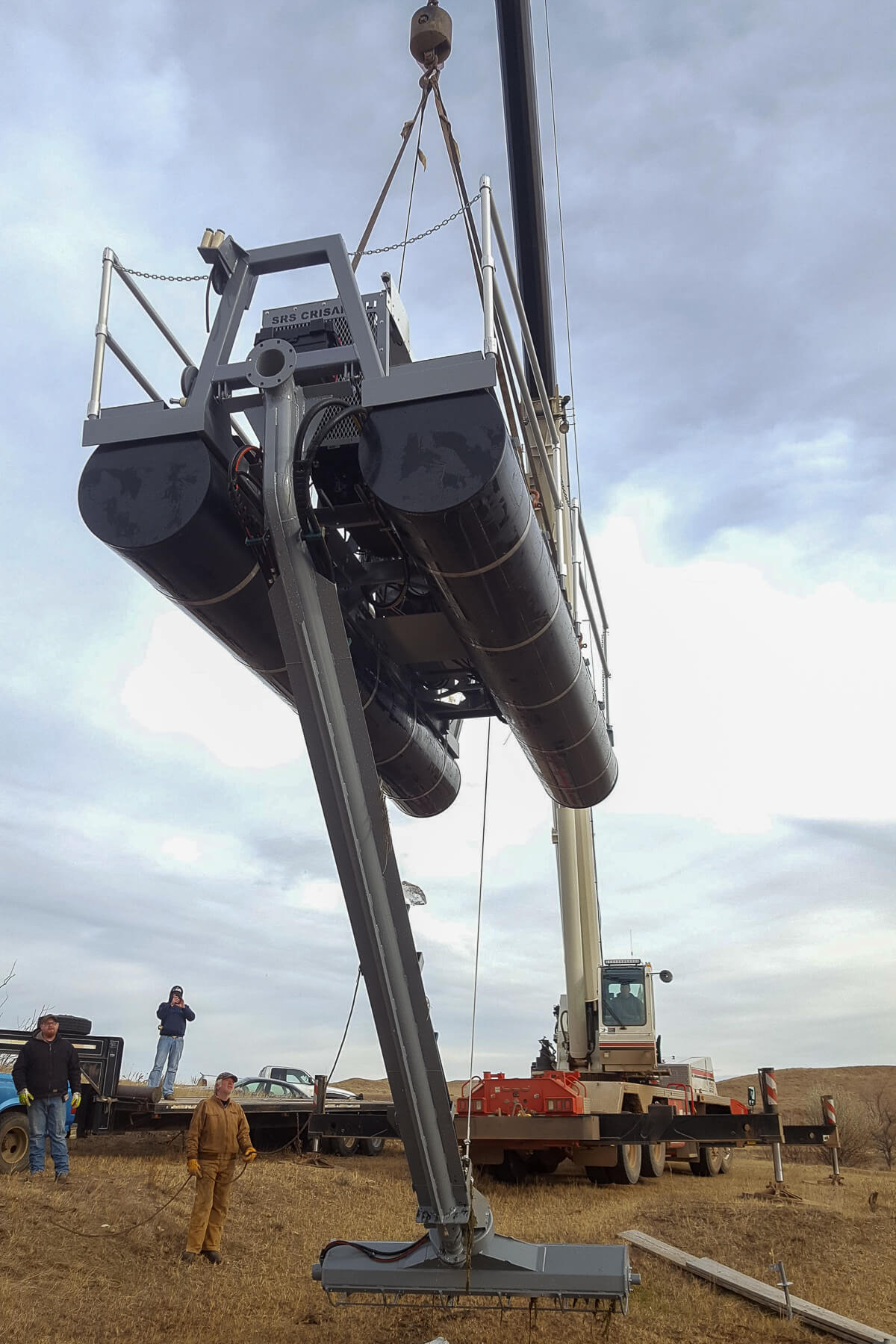

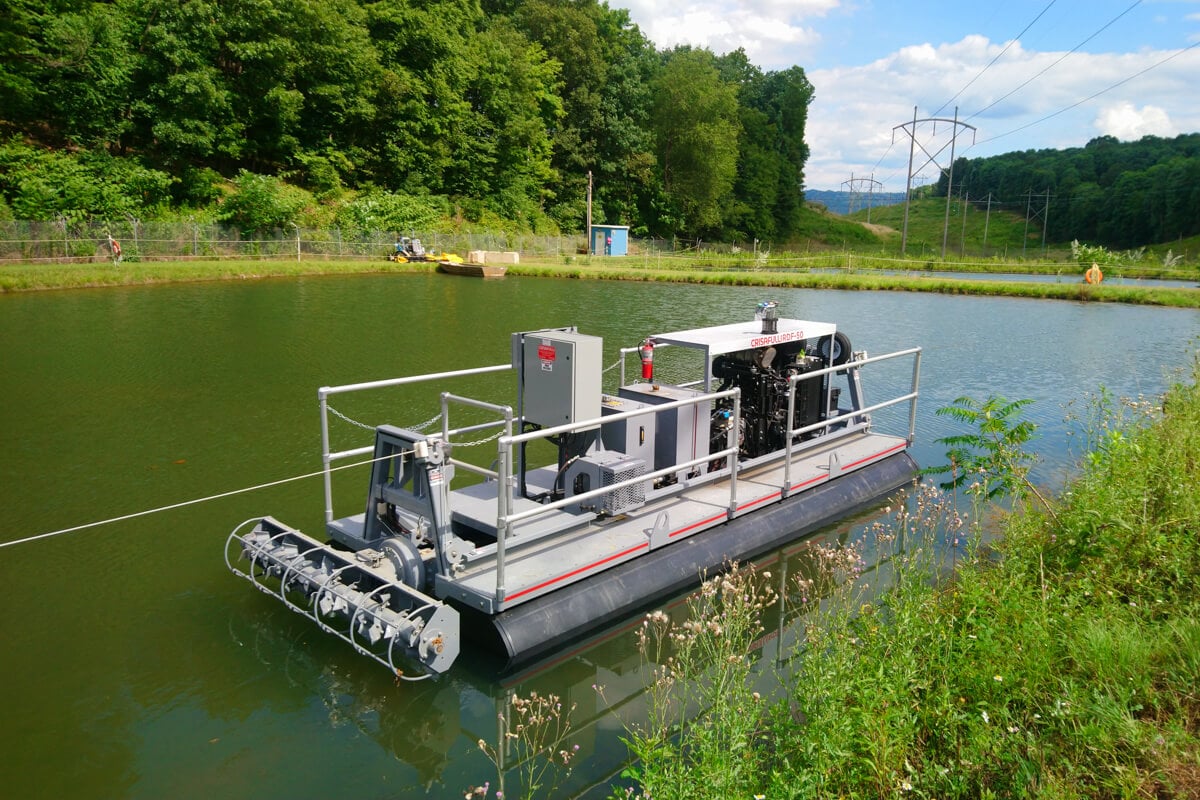

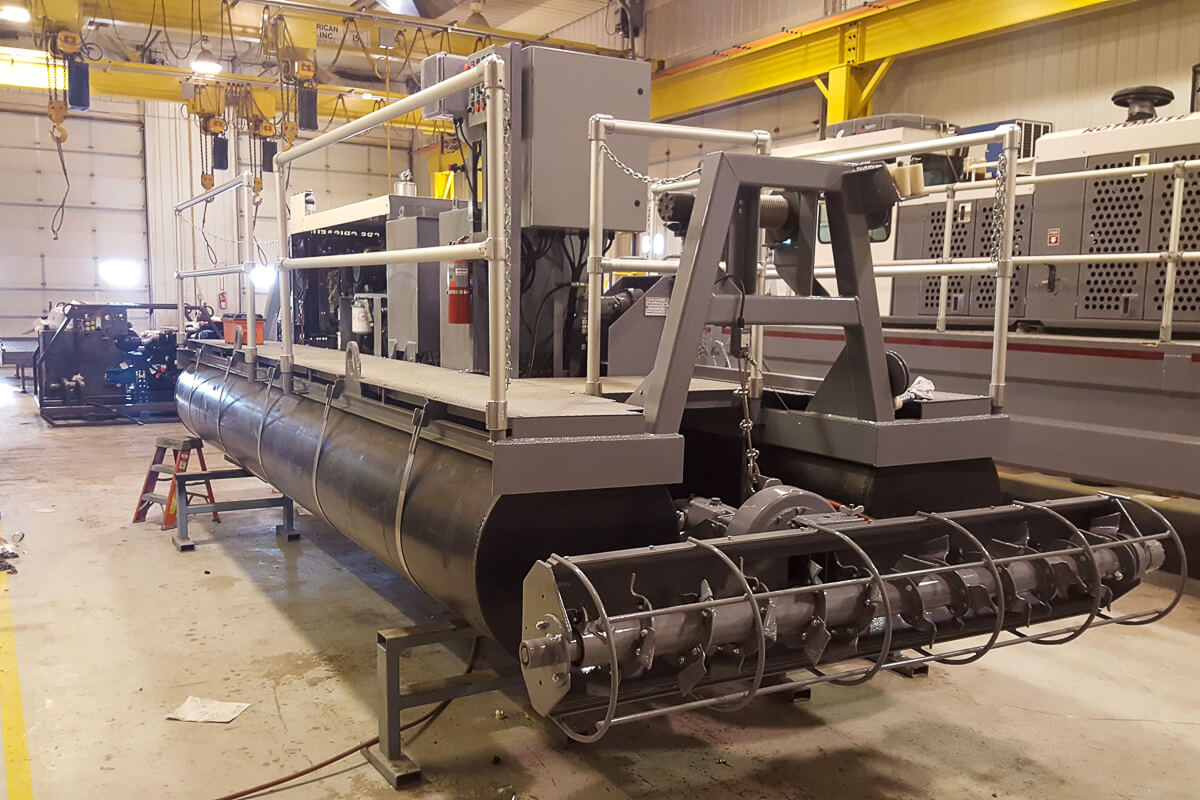

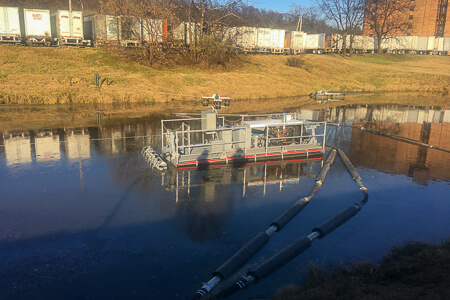

The RDF is a perfect dredge for when you don't have access to adequate power to run an electric FLUMP, and want to operate the dredge remotely.

The RDF solves industrial and municipal environmental problem in a low-cost, efficient manner. The RDF removes settled wastes and other by-products that no longer may be scattered over the countryside, but, instead, must be contained in settling ponds or lagoons, built to prevent wastes from leaching into the water-table.

Built tough to ensure dependable service in harsh environments, The RDF is simple to operate, easy to transport and can be built with HDPE pontoons, or in steel or aluminum. Crisafulli’s specialists have solved liquid waste problems for more than thirty years.

Key Benefits of RDF Ownership

  • The RDF doesn't require 420V electricity
  • The dredge operator isn’t exposed to potentially hazardous dredged materials
  • Sophisticated instrumentation options measure dredging performance
  • High solids dredging performance with minimum turbidity
  • Easily transported to multiple sites
  • Simple to maintain
  • Reliable and manufactured to last
  • Superior after-sale support from Crisafulli worldwide
  • Imperial
  • Metric

3" Standard Flump

Maximum Dredging Depth: 12'
Cutterhead width: 54"
Weight: 5500 lbs
Length: 21'
Width: 8.5'
Height: 6'
Draft: 12"
Pontoon Material: HDPE
Horse Power: 25
GPM: 300
Cubic Yards Per Hour: 20
Remote Control: Yes
Cabled Traverse: Yes

3" Severe Flump

Maximum Dredging Depth: 12'
Cutterhead width: 102"
Weight: 5700 lbs
Length: 21'
Width: 8.5'
Height: 6'
Draft: 12"
Pontoon Material: HDPE
Horse Power: 25
GPM: 600
Cubic Yards Per Hour: 30
Remote Control: Yes
Cabled Traverse: Yes

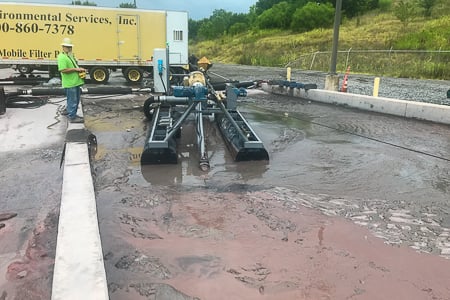

4" 50HP Flump

Maximum Dredging Depth: 12'
Cutterhead width: 102"
Weight: 6000 lbs
Length: 21'
Width: 8.5'
Height: 6'
Draft: 12"
Pontoon Material: HDPE
Horse Power: 50
GPM: 800
Cubic Yards Per Hour: 40
Remote Control: Yes
Cabled Traverse: Yes

4" 75HP Flump

Maximum Dredging Depth: 12'
Cutterhead width: 102"
Weight: 6300 lbs
Length: 21'
Width: 8.5'
Height: 6'
Draft: 12"
Pontoon Material: HDPE
Horse Power: 75
GPM: 1000
Cubic Yards Per Hour: 45
Remote Control: Yes
Cabled Traverse: Yes

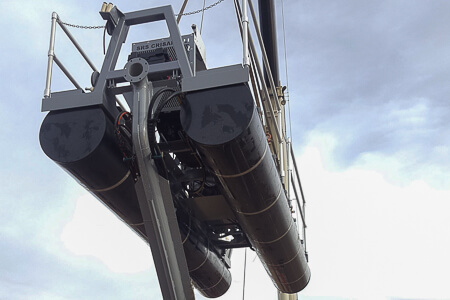

RDF-50

Maximum Dredging Depth: 15'
Cutterhead width: 102"
Weight: 8500 lbs
Length: 24.5'
Width: 8.5'
Height: 8.3'
Draft: 15"
Pontoon Material: HDPE
Horse Power: 50
GPM: 800
Cubic Yards Per Hour: 45
Remote Control: Yes
Cabled Traverse: Yes

RDF-75

Maximum Dredging Depth: 15'
Cutterhead width: 102"
Weight: 8500 lbs
Length: 24.5'
Width: 8.5'
Height: 8.3'
Draft: 15"
Pontoon Material: HDPE
Horse Power: 75
GPM: 1000
Cubic Yards Per Hour: 80
Remote Control: Yes
Cabled Traverse: Yes

3" Standard Flump

Maximum Dredging Depth: 3.7m
Cutterhead width: 1.4m
Weight: 2500 kg
Length: 6.4m
Width: 2.6m
Height: 1.8m
Draft: 30cm
Pontoon Material: HDPE
Horse Power: 25
Liters per Minute: 1135
Cubic Meters Per Hour: 15
Remote Control: Yes
Cabled Traverse: Yes

3" Severe Flump

Maximum Dredging Depth: 3.7m
Cutterhead width: 2.6m
Weight: 2600 kg
Length: 6.4m
Width: 2.6m
Height: 1.8m
Draft: 30cm
Pontoon Material: HDPE
Horse Power: 25
Liters per Minute: 2270
Cubic Meters Per Hour: 23
Remote Control: Yes
Cabled Traverse: Yes

4" 50HP Flump

Maximum Dredging Depth: 3.7m
Cutterhead width: 2.6m
Weight: 2700 kg
Length: 6.4m
Width: 2.6m
Height: 1.8m
Draft: 30cm
Pontoon Material: HDPE
Horse Power: 50
Liters per Minute: 3030
Cubic Meters Per Hour: 31
Remote Control: Yes
Cabled Traverse: Yes

4" 75HP Flump

Maximum Dredging Depth: 3.7m
Cutterhead width: 2.6m
Weight: 2850 kg
Length: 6.4m
Width: 2.6m
Height: 1.8m
Draft: 30cm
Pontoon Material: HDPE
Horse Power: 75
Liters per Minute: 3785
Cubic Meters Per Hour: 34
Remote Control: Yes
Cabled Traverse: Yes

RDF-50

Maximum Dredging Depth: 4.6m
Cutterhead width: 2.6m
Weight: 3850 kg
Length: 7.5m
Width: 2.6m
Height: 2.5m
Draft: 38cm
Pontoon Material: HDPE
Horse Power: 50
Liters per Minute: 3025
Cubic Meters Per Hour: 34
Remote Control: Yes
Cabled Traverse: Yes

RDF-75

Maximum Dredging Depth: 4.6m
Cutterhead width: 2.6m
Weight: 3850 kg
Length: 7.5m
Width: 2.6m
Height: 2.5m
Draft: 38cm
Pontoon Material: HDPE
Horse Power: 75
Liters per Minute: 3785
Cubic Meters Per Hour: 61
Remote Control: Yes
Cabled Traverse: Yes

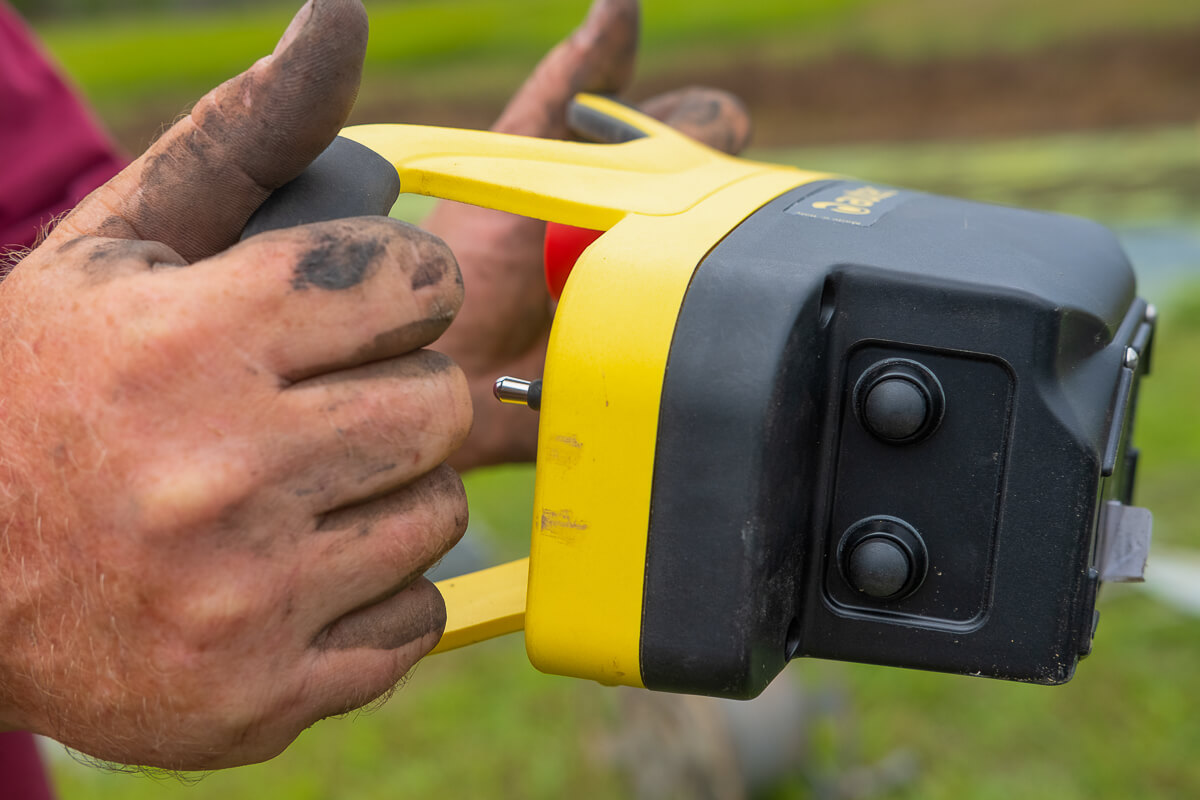

Remote Control

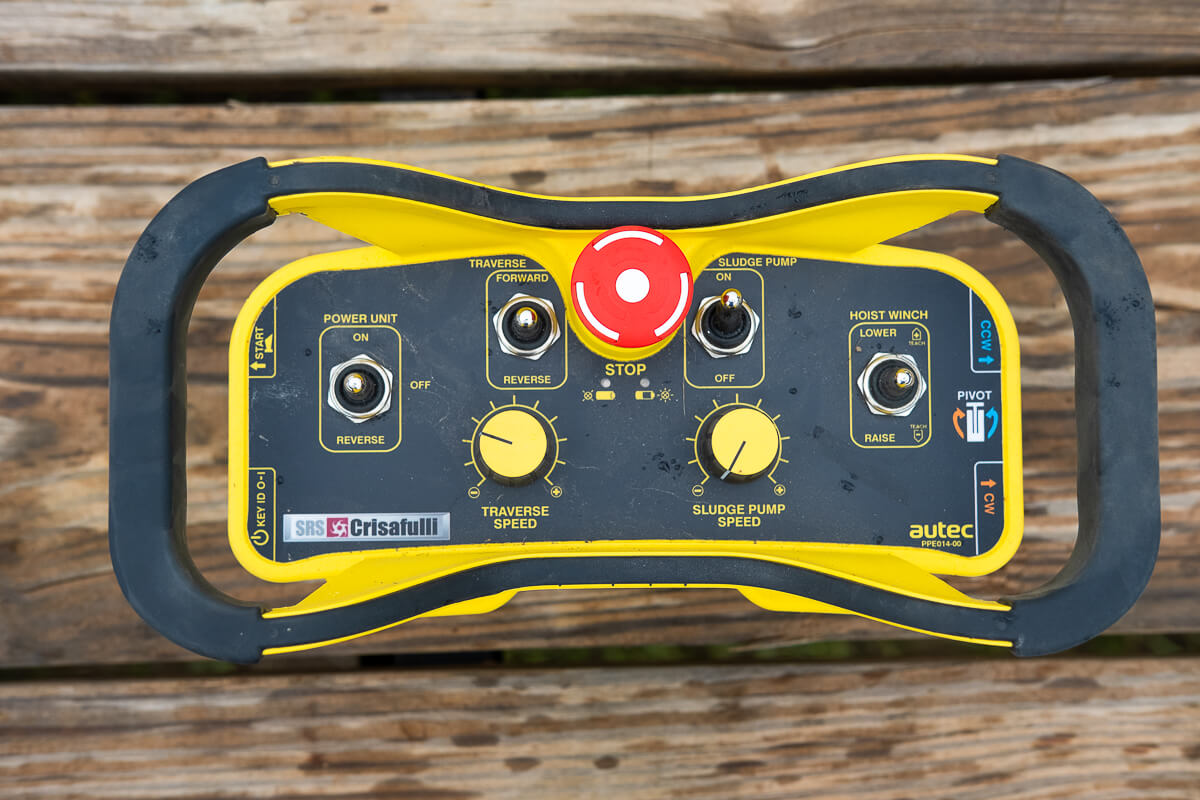

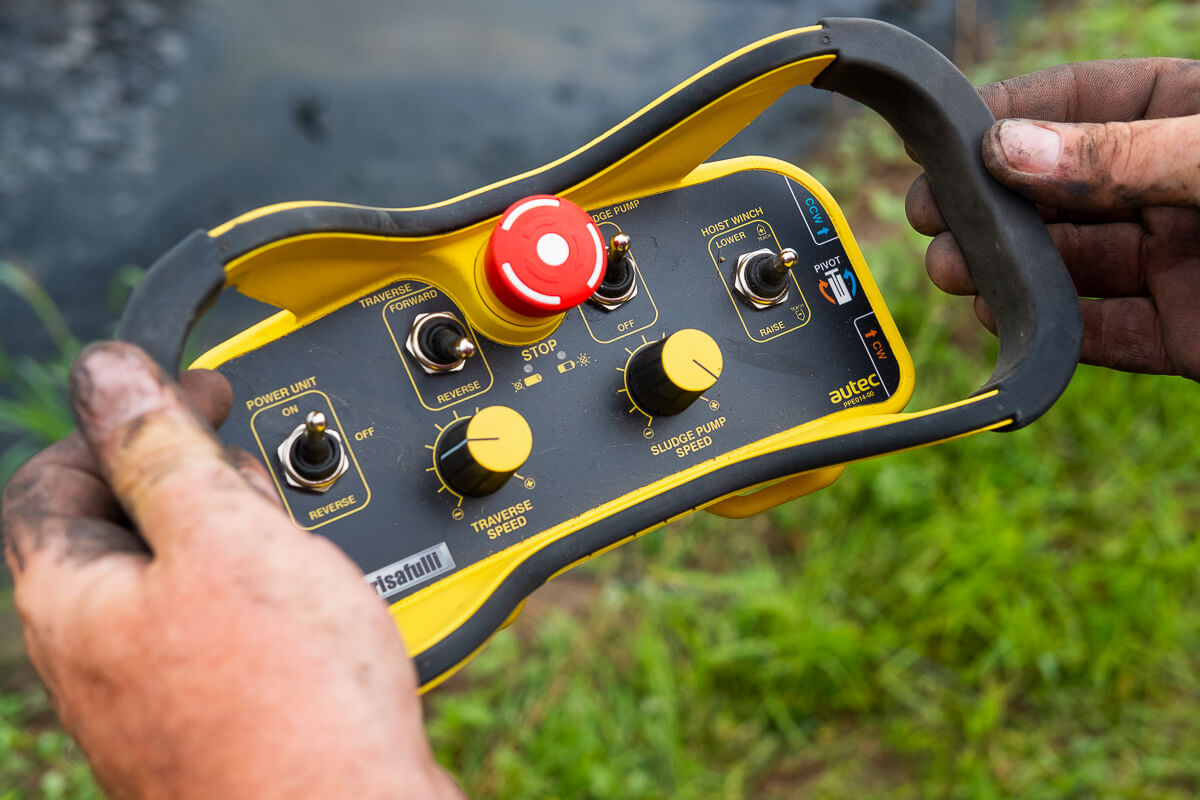

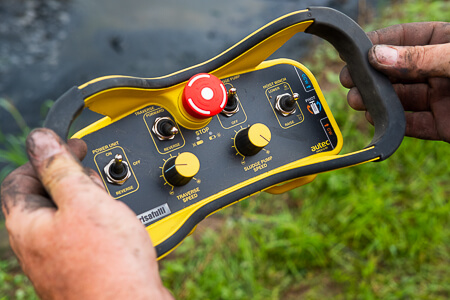

User Friendly Radio Remote Control

  • Works in the rain
  • Dredge depth readout on the transmitter (Optional)
  • Frequency hopping

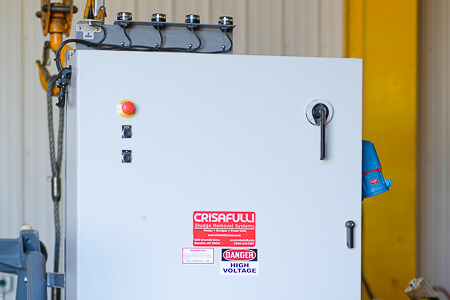

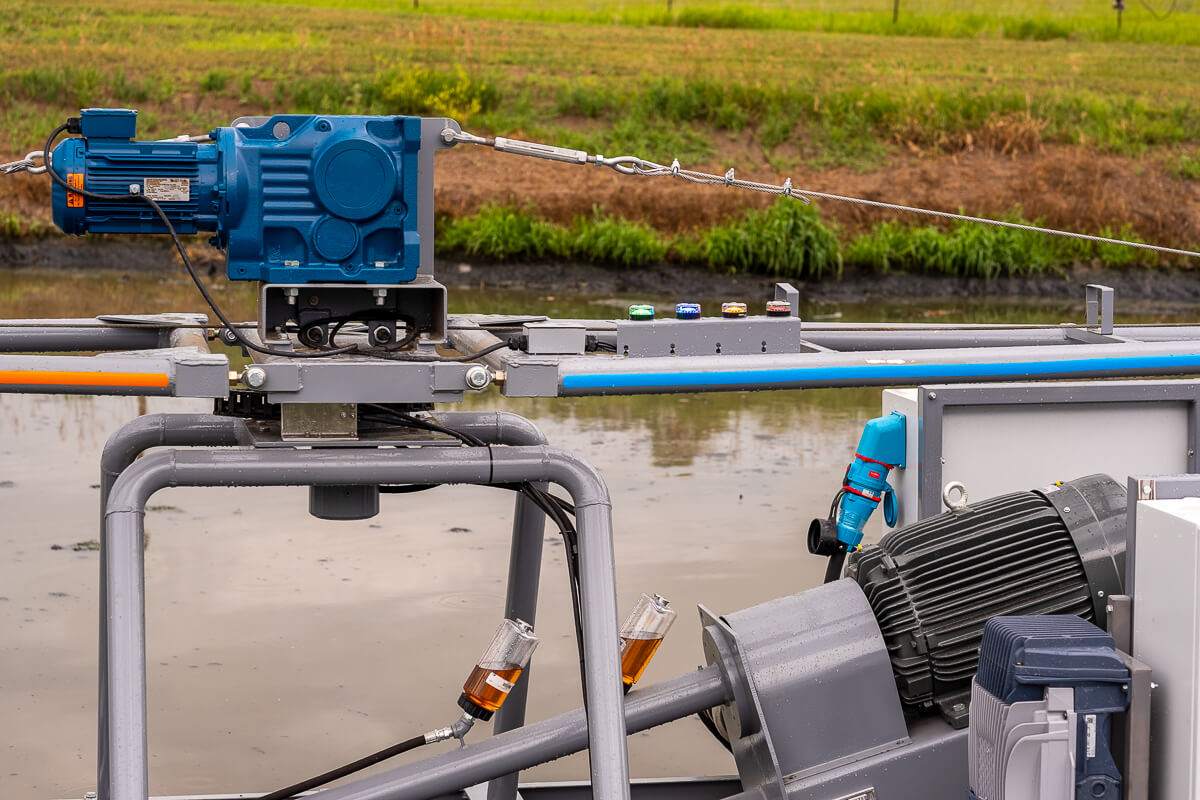

Daylight visible dredge status lights can be seen from a distance; in full sunlight.

    STATUS LIGHTS INDICATE
  • When electrical power has energized the dredge.
  • When the operator has control of the dredge.
  • When the dredge motors are on.
  • When there is a fault.
  • When the cutterhead is jammed.

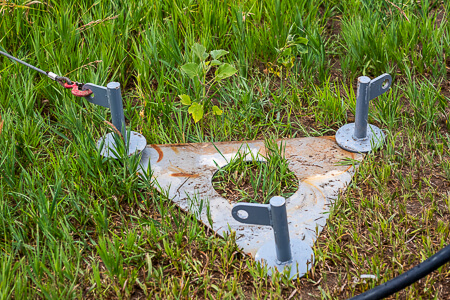

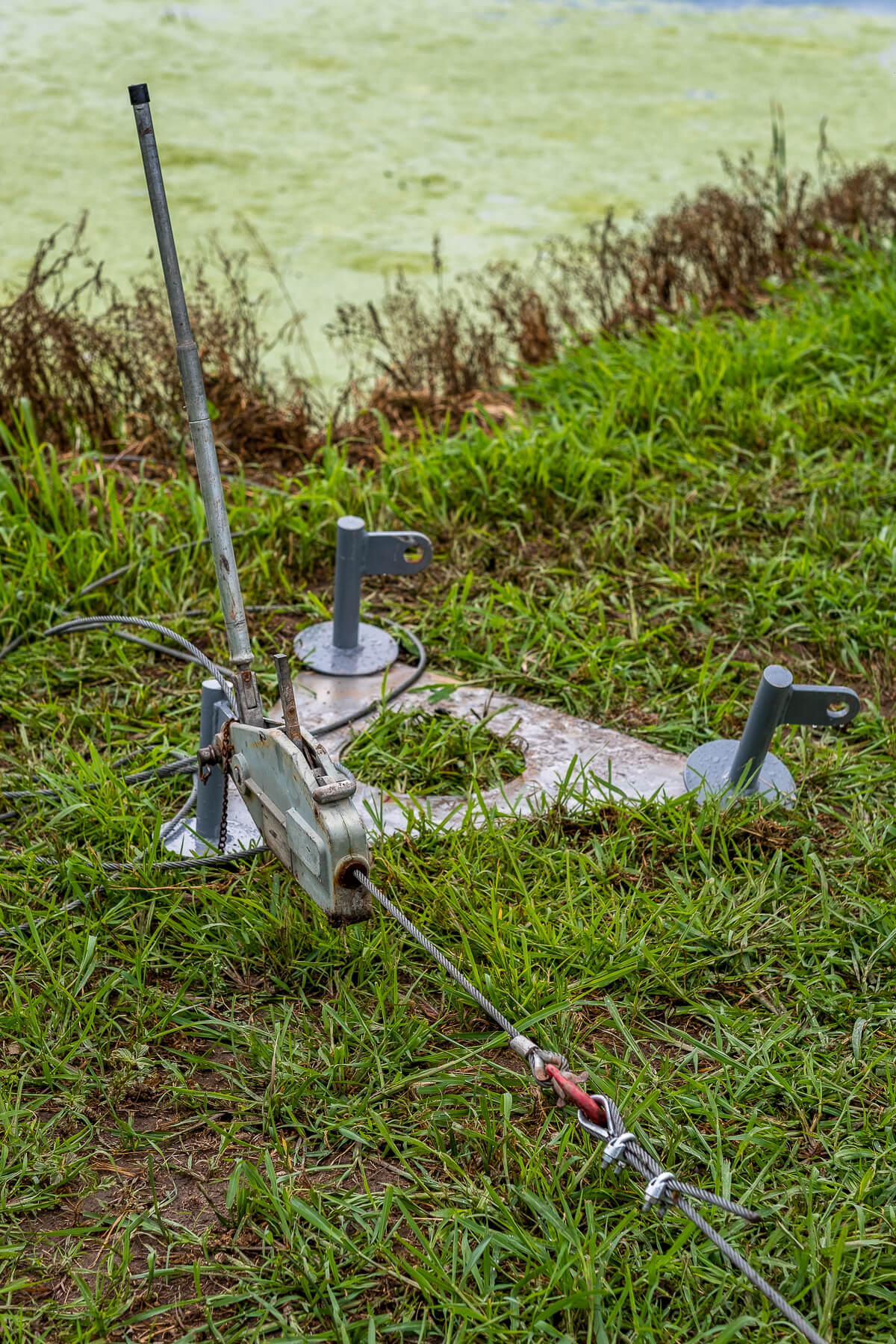

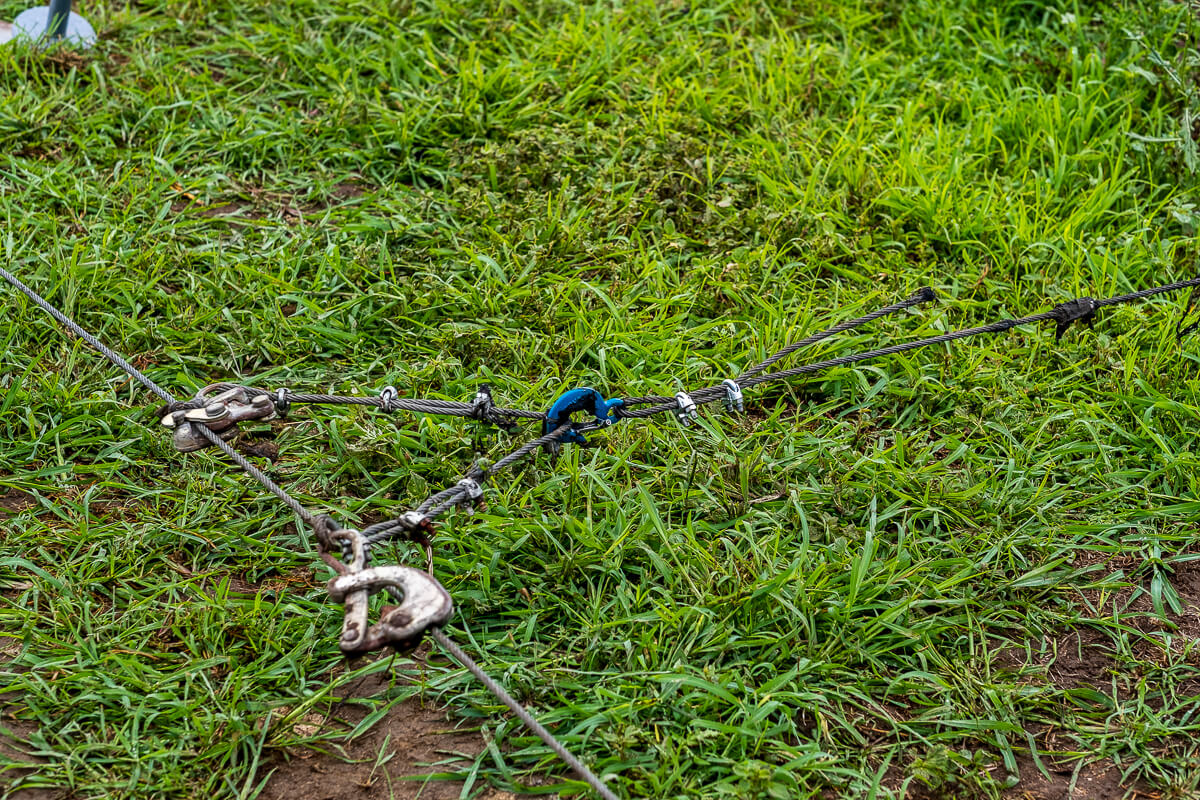

Cabled Traverse System

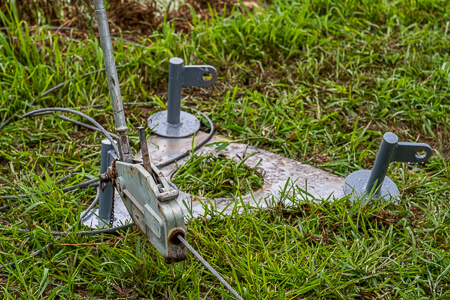

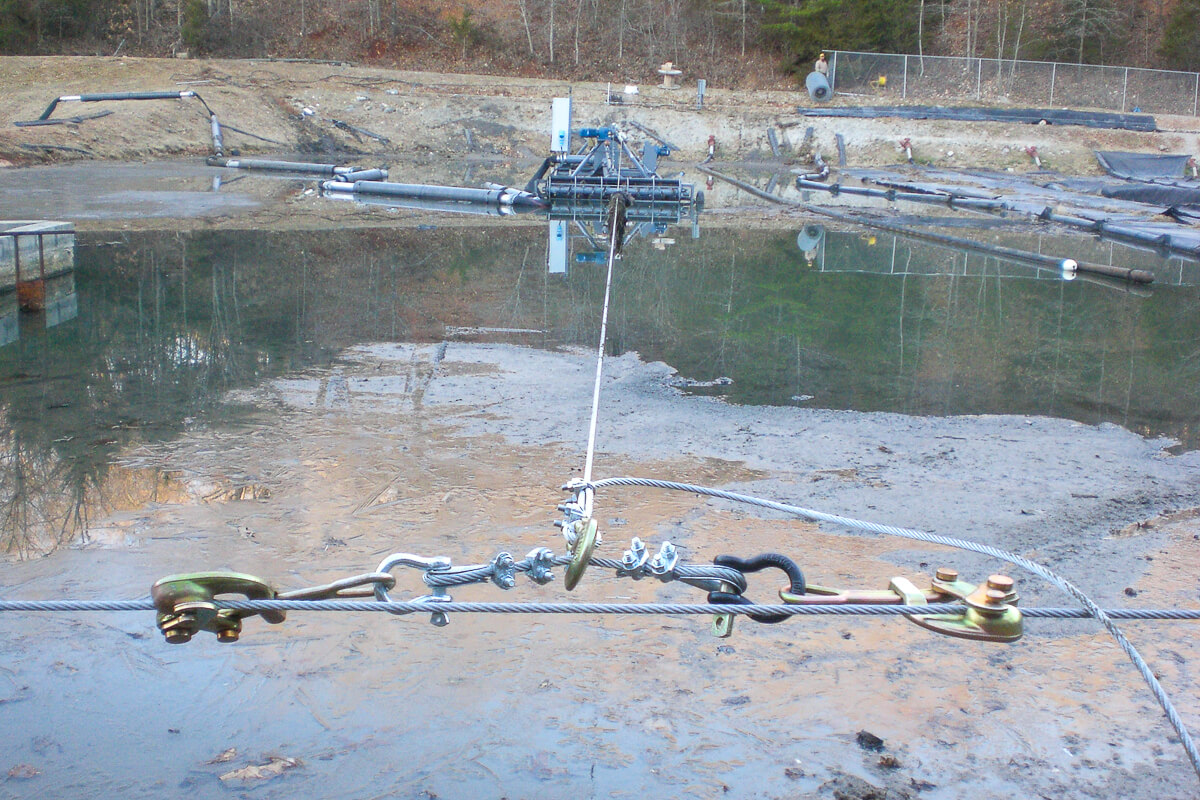

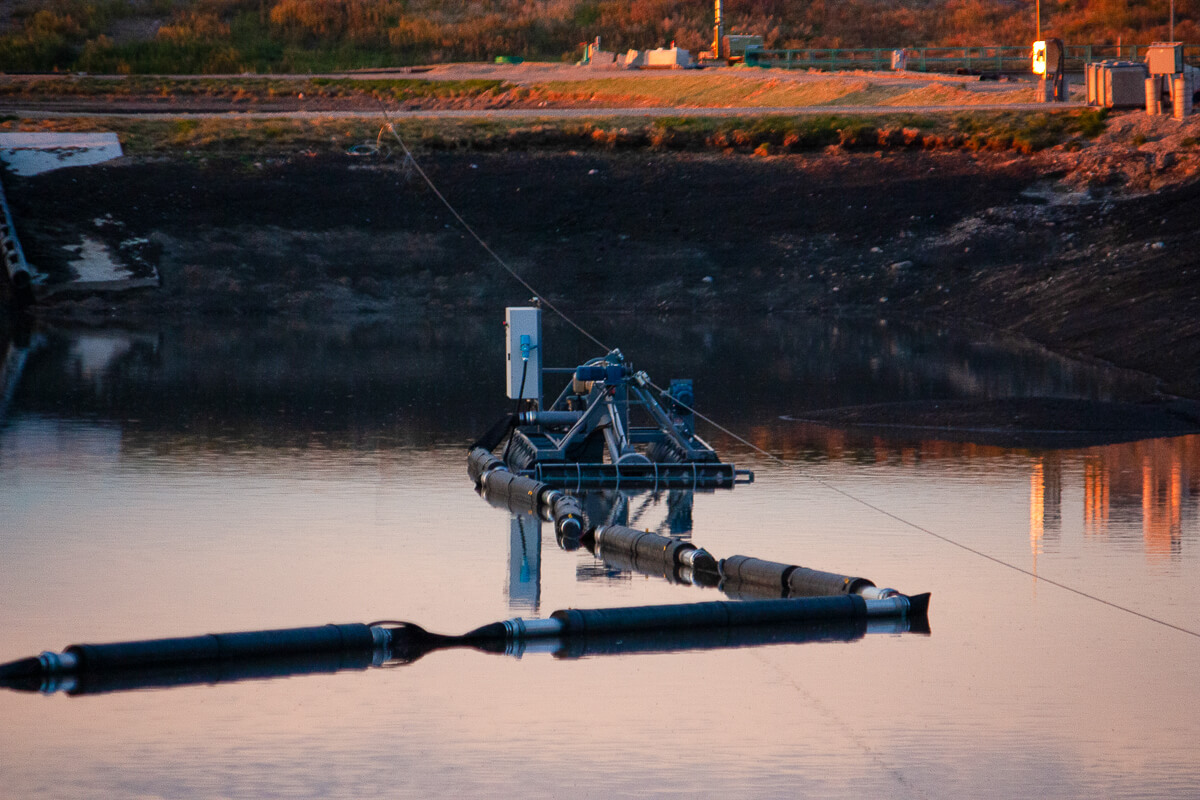

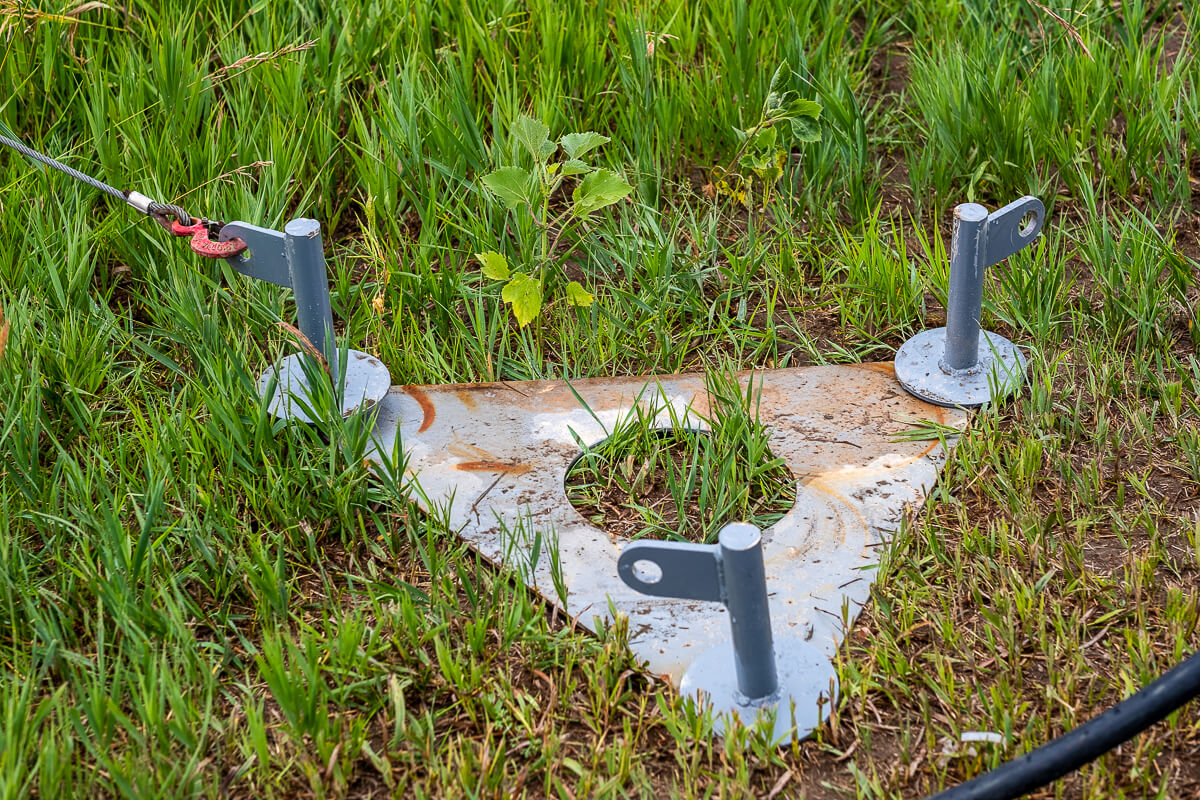

The unmanned FLUMP dredge, or the Rotomite, when operated in a cabled traverse system, are positioned and moved, either manually or automatically, along a tensioned galvanized steel cable extending across the lagoon or pond. The cable is attached at either end of the lagoon or pond to a galvanized steel cable affixed to sturdy steel posts set firmly in the ground (generally in concrete foundations). This form of traverse system is built with either two or four posts. Lateral positioning of the FLUMP is either manual, or electric by shore based electric winches.

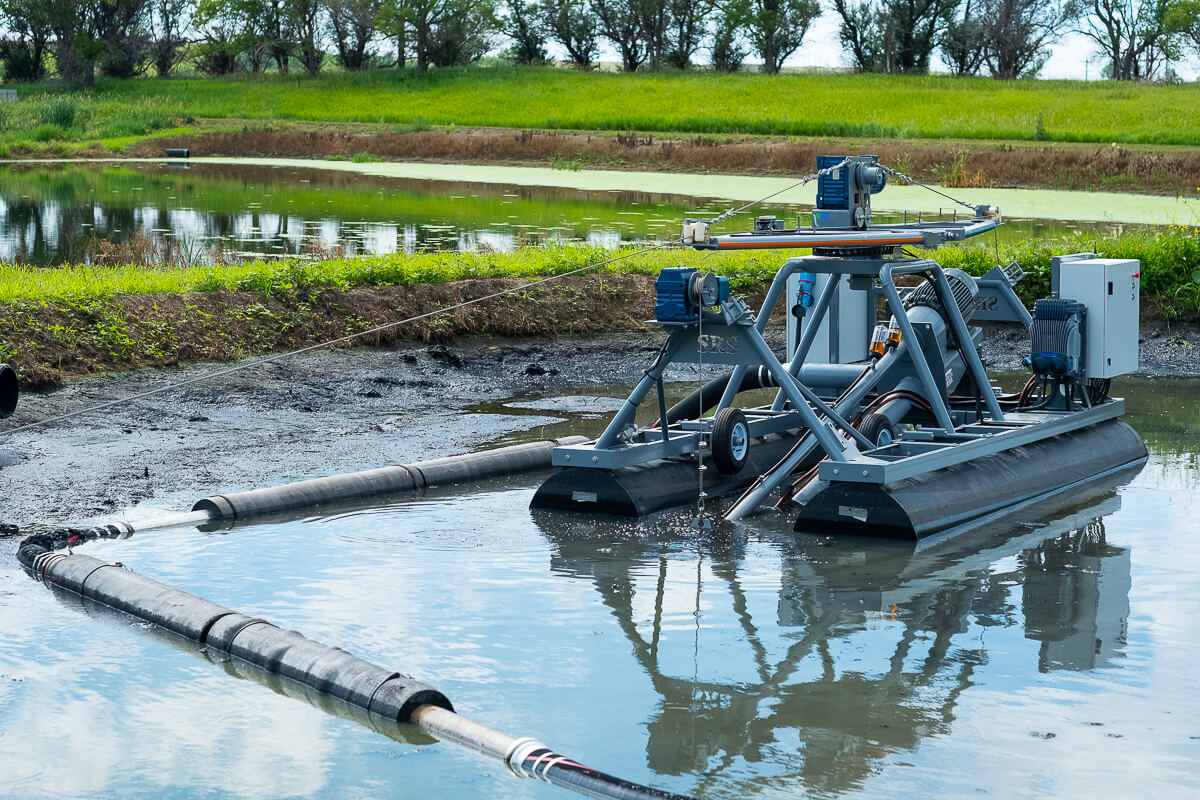

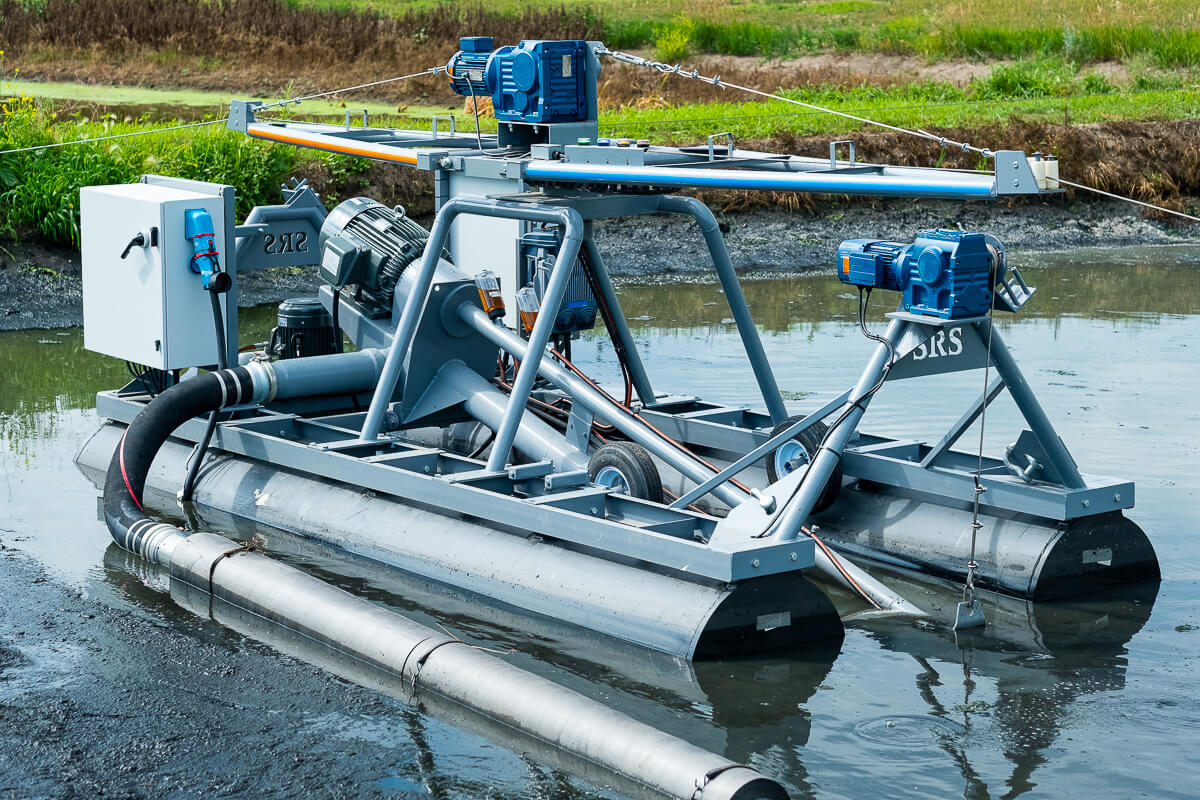

Pivoting Traverse

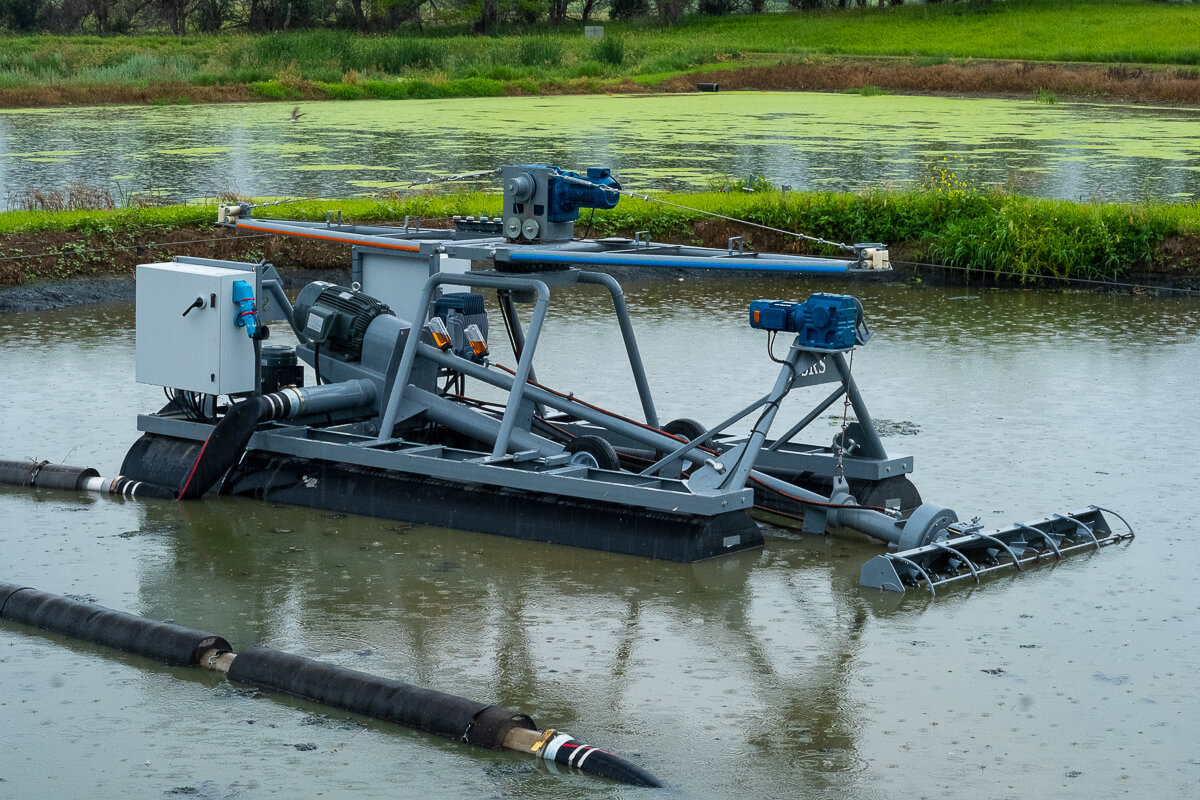

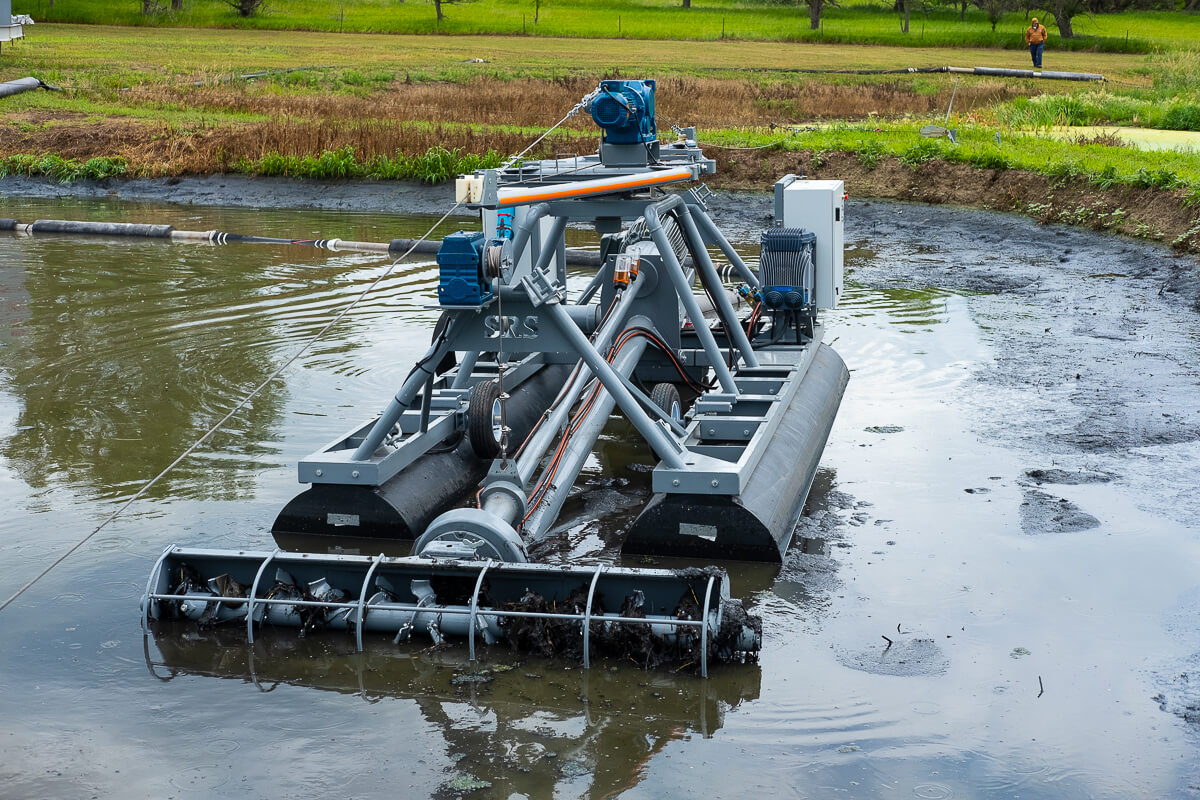

Dramatically reduces down time. Crisafulli’s unique pivoting traverse allows the entire FLUMP to pivot 180 degrees within one minute at the end of each forward dredging pass. Without the Crisafulli Pivoting Traverse, operators spend much time repositioning the dredge between dredging passes when a dredge is run on a cabling or rail traverse system. While some dredge makers claim full pumping rates when their dredges move backwards, few if any achieve 100% efficient dredge operation in reverse.

Pivot forward, and work faster. View the system in action.
