USACE SWAT TEAM - Focus on Flooding





By Laura M. Fleming, SRS Crisafulli President/CFO

As a company whose core technology was inspired by Eastern Montana’s need for flood irrigation pumps, the transformation of Crisafulli's PTO-powered trailer pump to a Flood Fighting tool is an All-American (plus immigrant) legend.

describe the image

We are particularly proud this week of the Flood Fighters of the US Army Corp of Engineers (USACE), our friends from Rock Island, Illinois, who deployed to combat the effects of Hurricane Sandy floods in the subways and tunnels of Manhattan.  As featured in the Wall Street Journal, the team used dry-prime pumps manufactured by our colleagues at Xylem, Gorman-Rupp, Franklin Electric and Andrew Sykes Group to dry out the tunnels.  Governor Cuomo praised the USACE’s Flood Fighting SWAT team.

According to Design Engineer Isaiah Helm, the Crisafulli trailer pumps, particularly PTO-powered  trailer pumps, which the USACE has purchased in quantity, are deployed in smaller cities and rural areas throughout the country. In these areas, tractors are readily available and it’s easier to access the water, so the power take-off advantages can be utilized.

Here are several examples of how the USACE recommends or utilizes Crisafulli pumps:

As we pause for a moment to reflect on the PTO (power take-off) feature of our core product, we tip our hat in appreciation to International Harvester’s pioneering work installing a PTO on their production tractor in 1920.  Who can calculate the total benefits of the power take-off feature, which allows accessories such as the Crisafulli Trailer Pump to draw energy from the tractor engine?

We end this week's blog with a visit to the U.S. Army Corps of Engineers, New England Facebook page - where we found a great photo of portable generators from one of our favorite vendors:  Baldor!

Baldor Generators resized 600

“Generators from small to large are being serviced and tested as power is restored to areas of New York and New Jersey that were hit hard by Hurricane Sandy. As power is restored and the generators are no longer needed by municipalities, they are being routed to Joint Base McGuire-Dix-Lakehurst so they can be sent back to their owners. The New England District has several people deployed to the New Jersey Recovery Field Office, Lincroft, New Jersey, to help with FEMA mission requirements and as part of the Federal disaster response team.”

Determining the Capacity of a Pump





Whether you are flood irrigating, flooding a duck pond, or just determining your pump capacity, it is good to know the measure of your pumping performance.  Below is a table of estimated performance for Crisafulli pumps.

Number of Acres Covered in Twelve Hours Pumping

GPM cu ft/sec. cu ft/sec. 1"
deep
2"
deep
3"
deep
4"
deep
6"
deep
8"
deep
10"
deep
12"
deep
20 .05 2.68 .53 .27 .18 .13 .09 .66 .05 .04
60 .11 6.68 1.33 .66 .44 .33 .22 .17 .13 .11
100 .22 13.4 2.65 1.33 .88 .66 .44 .33 .27 .22
160 .34 20.1 3.98 1.99 1.33 1.0 .66 .50 .40 .33
220 .50 30.1 5.97 2.99 1.99 1.5 .99 .75 .60 .50
300 .67 40.0 7.96 3.98 2.67 2.0 1.33 1.0 .80 .66
400 .90 53.4 10.6 5.31 3.54 1.78 1.77 1.33 1.1 .08
700 1.6 93.5 18.6 9.28 6.18 3.1 3.1 2.32 1.9 1.5
900 2.0 120.4 23.9 11.95 7.96 6.0 4.0 3.0 2.4 2.0
1200 2.7 160.5 31.8 16.0 10.6 8.0 5.3 4.0 3.2 2.7
3000 6.7 400.5 79.5 39.75 26.5 20.0 13.3 10.0 8.0 6.6
10000 22.3 1337.0 265.0 132.5 88.3 66.3 44.2 33.2 26.5 22.1

BY HORIZONTAL OPEN DISCHARGE METHOD
12274 DETERMINING THE CAPAC

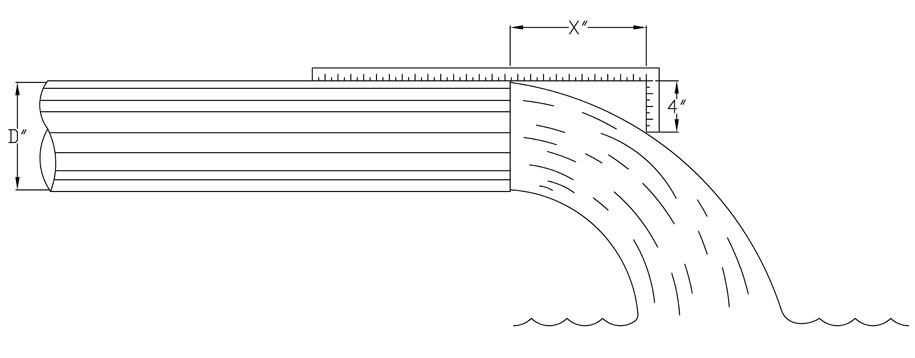

To estimate the pumping capacity of any given unit, construct an L-shaped measuring instrument similar to the one shown in the sketch.  The shorter side should be 4" long.  The longer side may be any convenient length marked in inches.  With the water flowing from the horizontal open discharge, place the long side of the L along the top of the discharge pipe, allowing the shorter side to hang downward as shown in the drawing.  Slide the L along the pipe until the 4" length barely touches the flow of water.  Note the distance travelled ("X") by the flow of water before it drops 4".  Presume, for example, that the distance travelled is 15" and the inside diameter of the pipe is 3".  Consulting the table below, locate 15" in the fisrt column (Horizontal Distance X(inches()).  Then move horizontally to the column labeled 3 (pipe diameter used).  Thus, for our hypothetical unit the pumping capacity is approximately 183 gallons per minute.

First Column = Horizontal Distance X (inches)
First Row = Nominal Pipe Diameter (inches)
Last Column = Average Velocity

  1 1.25 1.5 2 2.5 3 4 5 6  8 10 12
4 6 10 13 22 31 49 84            2.1
5 7 12 16 28 39 61 104 163         2.6
6 9 15 20 33 47 73 125 195 285       3.0
7 10 17 23 39 55 85 146 228 334 580     3.7
8 11 20 27 44 63 &98 166 260 380 665 1060    4.2
9 13  22  30  50  70  110  187  293  430  750  1190 1660  4.7
10  14  25 33  56  78  122 208 326  476  830  1330 1850  5.3
11 16  27  36  61  86 134  229  360 525  915 1460  2200 5.8
12  17 29  40  66  94  146  250 390  570  1000  1600  2220  6.2
13 19  32  43 72  102 158  270 425 620  1080  1730 2400  6.9
14  20  34  47  77  109 170  292  456  670 1160  1860 2590  7.4
15 21 36  50 83  117 183 312  490  710  1250 2000  2780  7.9
16 23  39  53  88  125  196 334  520  760 1330 2120 2960  8.4
17   42  57  93 133 207 355  550  810 1410  2260  3140  9.1
18     60  99 144  220 375  590 860 1500  2390 3330  9.7
19        110  148  232 395 620  910  1580 2520 3500 10.4
20         156  244 415 350  950 1660 2660  3700 10.6
21            256 435 685 1000  1750 2800    11.4
22              460  720 1050 1830 2920   11.8
23               750 1100 1910  3060   12.4
24                 1140  2000 3200   13.0



 Watch Crisafulli Videos.

Who Likes to Solve Water?





By Laura M. Fleming, SRS Crisafulli CFO and President

Xylem does.

XYLEM:  it’s basic function is to transport water, but it also transports some nutrients through the plant.  Xylem is one of two types of transport tissue in vascular plants.  The other is phloem, which transports soluble organic material made during photosynthesis.

xylemSo, there’s a new company, trading as XYL, which was spun off from ITT Corporation at the end of last year, and took the name XYLEM.   Xylem Inc. is a leading global water technology company focused on addressing the world’s most challenging water issues.  Xylem’s tagline is “Let’s Solve Water.”  These folks like the name – obviously they’re not afraid of Greek - because it highlights the engineering efficiency of their water-centric business by linking it with the best water transportation of all -- that which occurs in nature.

Good stuff.  We couldn’t agree more.

Of particular interest to the SRS Crisafulli team is that our friends at Godwin Pumps of America have been acquired by this new group, and that Godwin is now Xylem Dewatering Solutions, Inc.  Godwin will be carried as a brand name for their Dri-Prime automatic self-priming dry-running pump.

Ron AskinAlso of note, SRS Crisafulli’s Director of Engineering for three years in the late ‘80’s, Ron Askin, who had moved to Godwin Pumps in Helena, is now President of Xylem Water Solutions, US, in Bridgeport, NJ.  Make us proud, Ron!

Xylem is the world's largest provider of water and wastewater treatment solutions.  Xylem partners with governments and businesses across the globe with a single goal in mind: to deliver clean water to everyone.

Well, Godwin, we will miss your orange presence.  But we congratulate you for all the xylem.





Watch a Solids Pumping Demonstration by Godwin.

Learn about Xylem, Inc.

Xylem on the Global Water Crisis

Read Ron Askin's profile on Pump Zone.

The Many Costs of a Clogged Pump





By Isaiah Helm, SRS Crisafulli Applications Engineer

Clogged Pump
 Photo:  wef.org

In the February 2012 issue of Water Environment and Technology Magazine is an article titled “A solution for clogging pumps”, by Mike Gerszewski and Jim Fischer.  If you are looking for an answer to your high-heeled wooden dancing shoe problems, it’s not very helpful.  If you are looking for a case study in the costs related to plugging lift station pumps, it’s definitely worth a read.

The Village of Hartland, Wisconsin had frequent problems with debris clogging its sewage lift stations.  Three or four times per week at random times during the day workers were called to unclog a pump.  A staff of six operators was kept on hand to respond to those calls.  Unclogging each pump took at least four man-hours and was obviously not a fun task.

Ultimately the village discovered a new style of pump that could handle the debris without clogging.  As expected, the solution eliminated the clogging problem and the associated maintenance costs.  An added, unexpected cost savings was a 60% average reduction in energy usage.  Debris getting stuck in the impeller had dramatically reduced the pumping efficiency in the original lift stations.

The pump selection process considers many factors.  Debris in the material to be moved must also be one of them.  A lift station that cannot handle everything it encounters is not truly operating at its “best efficiency point.”



Read SRS Crisafulli Pumps Case Histories.

Watch SRS Crisafulli Vertical Pump product video.

Watch video of Crisafulli Vertical Pumps in action.

Request a Crisafulli Pump consultation.


Tags: ,

Is Your Trailer Pump Impeller Installed Correctly?





By Travis Stroh, SRS Crisafulli Applications Specialist

Over the years trailer pumps get modified, parts get replaced and sometimes one of those parts is a new impeller. Here are some tips for inspection, removal and installation to make sure your impeller gets installed correctly.

IMPELLER ROTATION AND ASSEMBLY INSPECTION
To avoid expensive repairs and downtime, take a minute and verify that your impeller is rotating in the right direction. Problems you might see if your impeller is installed backwards:

  • Pump does not deliver water
  • Insufficient flow delivered
  • Insufficient pressure developed
  • Pump requires excessive power

backwards impeller resized 600An impeller installed backwards

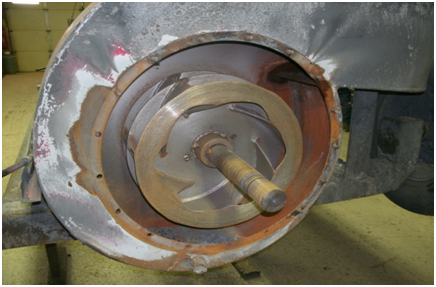

The impeller in this picture was installed backwards. When looking at the impeller from the back of the pump, make sure the blades are backhanding the water and not cupping it.

Operation of the pump with the impeller rotating in the wrong direction will result in greatly reduced performance and increased wear.  Check the impeller assembly to make sure the vanes curve backward from the hub out in direction of rotation as shown in the figure below.  If incorrect, the impeller is installed backwards and must be reversed on the shaft.

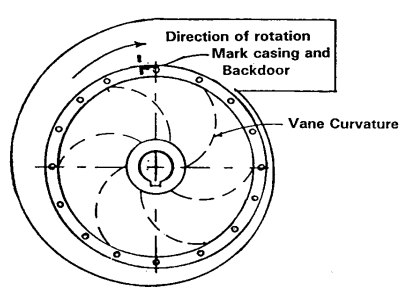

impeller drawing resized 600

Warning: Before performing maintenance, disconnect the power source and take any necessary precautions to assure that power to the pump will not be engaged while work is being done.

Note:  Ridding the shaft of paint with paint remover, cleaning and sanding the shaft with an emery cloth, and oiling the shaft may assist in impeller removal and installation.

IMPELLER REMOVAL

  1. Remove the nuts from the bolts on the casing back door (6-18 nuts depending on pump size).
  2. If water-lubricated bearings are used, no loosening of set screws on the bearing eccentric collar is necessary prior to back door removal.  This type of bearing is assembled to slide over the shaft.  However, if sealed bearings are used, loosening of the set screws on the bearing eccentric collar is necessary to allow the bearing to slide over the shaft.  (See note below.)
  3. Remove the casing back door.  Mark the casing and casing back door so reassembly will be to the same bolt pattern.  Tapping the back door around the bolts may be necessary for removal due to adhesive glue or gasket holding the back door to the casing.
  4. Loosen the impeller hub set screws.
  5. Slide the impeller off of the shaft.
  6. Remove key stock from shaft and inspect for wear or damage.

IMPELLER INSTALLATION

  1. Clean the impeller hub and shaft to assure both surfaces are clean, smooth, and free of paint, burrs, sharp gouges, etc.
  2. Place key stock in the shaft keyway
  3. Apply anti-seize lubricant to shaft and key.
  4. Slide impeller onto the shaft and over the keyway.  Check the impeller for correct vane curvature as discussed above.
  5. Center the impeller in the volute. The impeller is set equally spaced between front and back cases of pump to allow it to spin free.  The tolerance between inside the pump case and impeller is generally about 1/8".
  6. Block the impeller to prevent rotation.
  7. Tighten the impeller set screws which hold the impeller to the shaft.  Do not lubricate the set screws.
  8. Slide the back door and bearing over the shaft.  Align the back door to the proper bolt holes and install two or three nuts.  Turn the shaft and check the
  9. If the impeller is rubbing the casing, remove back door, adjust the impeller, reassemble and recheck for proper clearances.
  10. Once the impeller is centered properly, slide the back door a few inches away from the casing and spread gasket cement around the back door where contact is made with the casing.  This will prevent leakage from the pump and will improve overall performance.
  11. Bolt the back door to the casing.
  12. If water lubricated bearings are used, no set screw adjustment is needed.  Tighten the eccentric lock collar to the bearing by use of a punch and then tightened to the shaft by set screws.
  13. Remove any impeller blocking devices.  Turn the shaft to check alignment; shaft should turn freely by hand.  If binding of the shaft occurs, adjust bearings and recheck alignment.



Watch SRS Crisafulli's how to video How to Install Discharge Tubing.

Watch SRS Crisafulli's Trailer Pump video.

Watch SRS Crisafulli's Slurry Trailer Pump video.

Watch SRS Crisafulli's pump slideshow.

Fill out a pump application request.

Get a free pump consultation.

Trailer Pump Operation and Performance (Part 3 of 3)





By Isaiah Helm, SRS Crisafulli Applications Engineer

SYSTEM CURVES

Just as a plot can be made of pump performance, a graph can be made of the resistance to flow of the piping system through which the pump must drive the fluid.  Using the same head-flow coordinates as the pump performance curve, the figures below can be created.  The curve in Figure 1 represents a system in which there is no static head.  The curve in Figure 2 shows the loss curve displaced upward an amount equal to the static head.

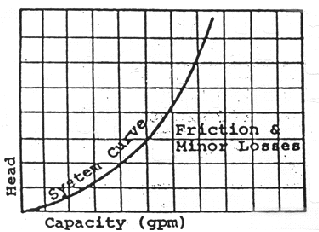

System Curve 1Figure 1: a system in which there is no static head

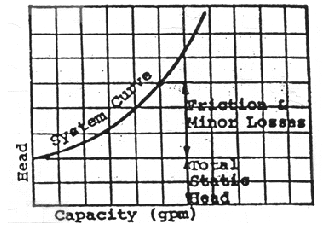

System Curve 2Figure 2:  the loss curve displaced upward an amount equal to the static head

After a pump is installed on the basis of a certain head and capacity requirement, it may be desired to vary the pump's performance.  A controllable restriction such as a valve can be placed in the discharge line to vary the system friction loss (dynamic head).  The operating point of the pump may then be moved along its performance curve by opening or closing the valve.  Figure 3 below demonstrates the response to changes in head.

System Curve 3

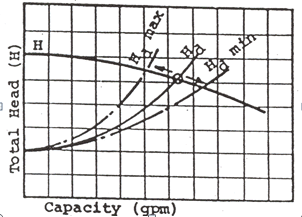

Figure 3: the response to changes in head

In most systems, the static head will vary as a pond is drained or a river level rises and falls.  As the vertical distance from intake to discharge increases, the static head also increases, effectively raising the system curve.  The system head is then represented as a pair of parallel curves intercepting the performance curve, as shown in the figure 4 below.  These two curves determine through what range of capacity and total head the pump will be expected to operate.

System Curve 4

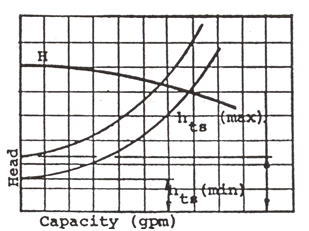

Figure 4:  parallel curves intercepting the performance curve

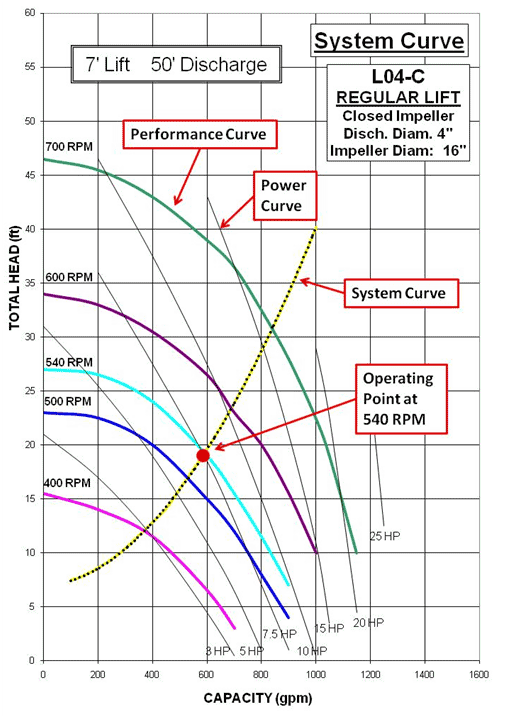

An example system curve is shown below for a 4-inch L-series pump.  The static head (lift) is 7 feet, and it is pumping through 50 feet of rubber discharge tubing.  The TDH increases from the base value of 7 feet as the flow increases and more energy is lost to friction between the water and discharge tubing.  If the impeller is spun at 540 RPM, the intersection of the 540 RPM curve and the system curve designates the expected operating point.  In this example situation, the pump  will produce nearly 600 gallons per minute out the end of the 50 foot discharge hose.

System Curve 5



Request a consultation with one of our Applications Engineers/Specialists.

Watch a Crisafulli Trailer Pump Video.

Watch a Crisafulli pumps slideshow.

Trailer Pump Operation and Performance (Part 2 of 3)





By Isaiah Helm, SRS Crisafulli Applications Engineer

PERFORMANCE CURVES

Performance curves are used to predict a pump's flow as a function of total dynamic head, impeller diameter, and rotational speed.

Total dynamic head (TDH) is measured in feet and equals the total of a system's static and dynamic heads.  Static head is the vertical distance the fluid is lifted, and does not change the flow.  Dynamic head represents the potential head that is lost to friction between the fluid and the piping system, and increases with flow.

pump performance curve

Head is equivalent to pressure, in that head in feet divided by 2.3114 equals the pressure at the pump in pounds per square inch.

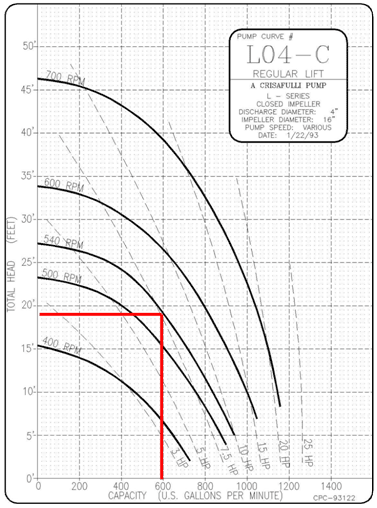

The red lines on the performance curve above show that a 4 inch L-series trailer pump with a 16 inch diameter impeller spinning at 540 RPM will produce 600 GPM at a system TDH of 19 feet.



Request a consultation with one of our Applications Engineers/Specialists.

Watch a Crisafulli Trailer Pump Video.

Watch a Crisafulli pumps slideshow.


Trailer Pump Operation and Performance (Part 1 of 3)





By Isaiah Helm, SRS Crisafulli Applications Engineer

Crisafulli pumps are naturally robust, and capable of handling a variety of unscreened water-borne debris and slurry mixtures.  The following table lists the maximum sizes of spherical solids each model can pass without clogging.



Impeller (in)

Solid Size (in)

4

1-1/4

6

1-3/4

8

2-1/4

10

3

12

3-3/4

16

5-1/4

24

7-1/2



Occasionally the pump's speed will have to be changed to get more or less flow and pressure.  A small change in speed can result in a large change in power required.  Increasing the speed by a factor of 2 increases the horsepower requirement by a factor of 8 (2 cubed).  This can be estimated with the Affinity Laws below, taken from the Cameron Hydraulic Data Book (Flowserve Corporation):

Crisafulli Pump Curve

H = Heads in feet

Q = Capacities in gallons per minute

S = Speeds in revolutions per minute

BHP = Brake Horsepower

Subscript 1 is for original design conditions.

Subscript 2 is for new design conditions.

Note: The Affinity Laws lose accuracy with larger speed variations.  Consult with the factory when considering speed changes of more than 20%.

A pump's impeller may need to be changed in order to get more flow and pressure or to require less horsepower with resulting less flow and pressure.  SRS Crisafulli offers up to three different impeller styles for each pump size.  They are referred to as Regular Lift, Intermediate Lift, and High Lift impellers.  The difference is their diameter.  For a change from a 16 inch Regular Lift impeller to a 21 inch High Lift impeller, the flow would increase by a factor of 1.3, the pressure by a factor of 1.7, and the power by a factor of 2.2.  This effectively doubles the horsepower requirements without changing the pump speed.

While Affinity Laws exist for diameter changes, they are only accurate for small changes of 5%-10%.  The best way to understand this relationship is to view the pump performance curves for the various impellers offered by SRS Crisafulli.



Request a consultation with one of our Applications Engineers/Specialists.

Watch a Crisafulli Trailer Pump Video.

Watch a Crisafulli pumps slideshow.

Lake Dorothy Hydroelectric Dam Completion Benefits Alaska Residents

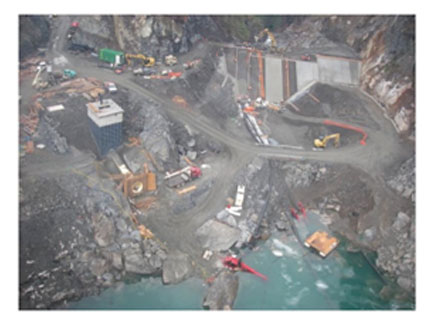

The Lake Dorothy Hydroelectric Project, located near Juneau Alaska, was begun in 2006 and completed in 2010.  Karl Vander, of North Pacific Erectors, was the Project Manager.  North Pacific Erectors, a General Contractor for commercial and industrial construction, provided all construction trade labor, materials and expertise in the design-build hydroelectric development.

Lake Dorothy      Photo Credit:  North Pacific Erectors, Inc.

We recently asked Karl to describe the Lake Dorothy hydroelectric dam.  "Lake Dorothy is a 15 megawatt hydro power plant that is at sea level.  The water is brought to the project via a penstock (5' diameter metal pipe) from a lake tap (a tunnel to the bottom of Lake Dorothy.)  That water is controlled by a 5' diameter valve and a 1,100' piece of penstock.  The water is spilled out of the tunnel and down existing creeks through Louie Lake and Bart Lake.  From that point there is an intake structure for the 5' pipe that takes it the rest of the way to the power plant."

Lake Dorothy Photo Credit:  Alaska Electric Light and Power's "Lake Dorothy The Cost of Generation" presentation

Karl added, "The project is complete and has the capability, with another tunnel and two more turbines added, to produce another 15 megawatts in the future.  The power is owned by Alaska Electric Light and Power, the electrical utility in Juneau and sold to Juneau residents.  Lake Dorothy compliments the 70 megawatt hydro plant at Snettisham and three other 3 megawatt plants that supply Juneau."

In a presentation by Tim McLeod, President of Alaska Electric Light and Power, we saw a photo history of the project, including a hair-raising shot of a treacherous road being cut from the mountain side.  This made us question "how the heck did they get all the equipment to such a remote location?"

Lake Dorothy
Photo Credit:  Alaska Electric Light and Power's "Lake Dorothy The Cost of Generation" presentation

Karl explained "All the materials and equipment to build the Lake Dorothy project were barged in and the dirt crew that built the road lived there in a camp.   Our crew took a 40' boat to and from the job 20 miles everyday."



Read and see a photo history in Tim McLeod's PDF presentation.

Read Alaska Electric Light and Power Company's description of The Lake Dorothy Project.

Read the North Pacific Erectors, Inc. Lake Dorothy Hydroelectric Project Information.



Have a project you are working on that you think our SRS Crisafulli specialists can help you with?  Contact us today! Be one of the first to mention this article and we'll send you an SRS Crisafulli hat.

5 Tips - SRS Crisafulli Temporary Discharge Tubing





By Isaiah Helm, SRS Crisafulli Applications Engineer

The 2011 battle against the flooding Missouri, Mississippi, and Souris Rivers has been in the news.  The Souris River winds its way down from Canada into the Minot, North Dakota area and then back to Canada.

Flooded home resized 600Photo Source:  The Washington Post.  Minot home flooded by Souris River

Spring and Summer of 2011 saw real flooding problems creating high demand for flood management PTO powered trailer pumps and accompanying discharge tubing.  Demand for SRS Crisafulli's heavy duty tubing quickly outpaced supplies.  As an SRS Crisafulli Applications Engineer I found myself searching for discharge tubing alternatives.

A co-worker visited the Minot, North Dakota area in July and witnessed some SRS Crisafulli Trailer Pumps in flood management action.

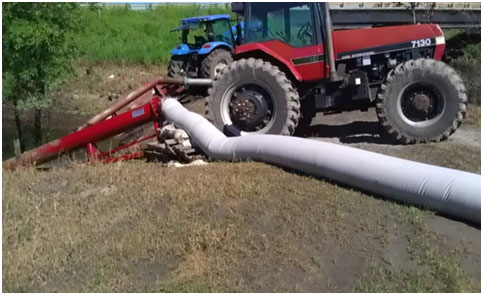

Crisafulli trailer pumps1SRS Crisafulli PTO Trailer Pump with lightweight vinyl discharge tubing in Minot, North Dakota

You'll notice the pumps are not using our standard black industrial duty discharge tubing.  My search for discharge tubing alternatives resulted in the light-duty tubing pictured above.

This alternative tubing was custom manufactured for the standard hose ring discharge on our 12" and 16" pumps.  The ends are folded over and sewn down to combat fraying.  Some advantages to this option:

  • Costs are about a quarter of the heavy-duty tubing price, and are more affordable when storage conditions and usage frequency result in buying new hose every time the pump is used.
  • Very light in weight - less than 50 lbs, compared to 150 or 200 lbs. Easily handled by one person and can be shipped rapidly via UPS rather than by a freight carrier.
  • Good alternative when heavy-duty tubing options are not available.

For those who use this light-weight tubing, using the following 5 tips will improve the experience:

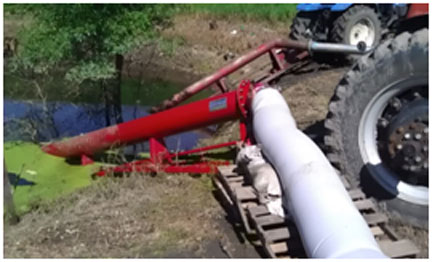

  1. Crisafulli trailer pumps2As demonstrated in the photo above, support the hose as it exits the pump to decrease the chance of the weight and pressure pulling it off the pump.

  2. Our standard hose clamps are designed for thicker industrial tubing and will not hold the light weight tubing without help.  Solve the problem by increasing the hose thickness under the clamp by wrapping the hose at the location with thick, flexible material.  Old belts or a piece from old hose work well.  The light-duty tubing does have a small rope sewn into each end, but that alone is not enough.

  3. Make sure the tubing isn't rubbing against anything hard or sharp.  This applies to our standard industrial strength tubing as well, but thinner, more flexible hose will rub through faster.

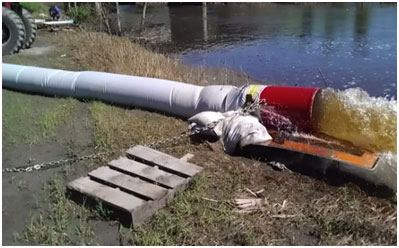

  4. Crisafulli trailer pumps3Avoid letting the hose flutter as the water goes through it, which causes premature wear by being flexed back and forth rapidly.  It's recommended to put some kind of restriction on the end of the hose to keep it tight and stiff as shown above.

  5. Multiple hoses are connected by clamping each to a short section of pipe.  They cannot connect to each other without pipe as is used in our standard industrial tubing.

We are pleased to now have a "Plan B" when heavy-duty industrial tubing is too heavy, too expensive, or unavailable.

Our best wishes go out to all the resilient residents of Minot - Isaiah Helm, SRS Crisafulli Applications Engineer.

Read The Washington Post Article: "Souris river flooding forces thousands of Minot, North Dakota residents to evacuate"

Watch SRS Crisafulli Pump Slideshow.

Read about SRS Crisafulli Trailer Pumps.

Fill out a Pump Application Form.

All Posts
