Vertical Pumps Dual Drive - PTO/Electric. Flows to 12,000 at 40' TDH, Solids 5.25".

VERTICAL DUAL DRIVE PUMPS - PTO/ELECTRIC
L - Series Belt Drive - Standard Duty Models
Standard Options

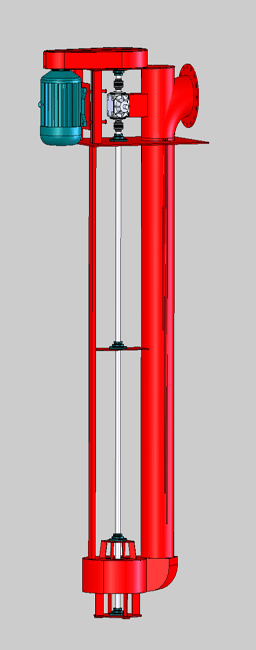

Description. SRS Crisafulli™ “L” Series Standard Duty Dual Drive Pumps are belt-driven centrifugal pumps which incorporate a right angle gearbox allowing the pump to also be PTO driven. The dual drive vertical pumps are manufactured in standard 11 foot lengths from base to discharge (optional lengths available) complete with an A36 steel pump volute and impeller, drive shaft, one double roller thrust bearing, three or more ball bearings, bearing protection systems with extended lubrication lines, belt & sheave speed reduction, belt & sheave guard, adjustable motor base plate, PTO shaft, right angle gearbox with a 1 to 1 ratio (other ratios available), a hose adaptor discharge (other discharge styles available). Maximum gearbox hp is 300.
Performance capabilities. See below for performance data.
Size, Description, Performance
Standard Duty Standard Model
SRSC Part Number
Est. weight pounds
HP
Solids Passing inches
Flow GPM
TDH Feet
4” L-Series Regular Lift 400-700 RPM
VGD04RA-000
1,400
5-25
2
200-1,100
20
4” L-Series Intermediate Lift 400-700 RPM
VGD04IA-000
1,500
7.5-30
2
200-1,400
30
4” L-Series High Lift 400-700 RPM
VGD04HA-000
1,600
10-50
2
200-1,400
40
6” L-Series Regular Lift 400-700 RPM
VGD06RA-000
1,500
10-40
2.25
500-2,500
20
6” L-Series Intermediate Lift 400-700 RPM
VGD06IA-000
1,600
15-60
2.25
500-3,000
30
6” L-Series High Lift 400-700
VGD06HA-000
1,700
20-200
2.25
500-3,500
40
8” L-Series Regular Lift 400-700
VGD08RA-000
1,600
10-40
2.50
500-3,000
20
8” L-Series Intermediate Lift 400-700
VGD08IA-000
1,800
20-100
2.50
1,000-4,500
30
8” High Lift 400-700 RPM
VGD08HA-000
2,000
30-150
2.50
1,000-5,500
40
10” Regular Lift 400-700 RPM
VGD10RA-000
1,700
15-60
3
1,000-4,500
20
10” Intermediate Lift 400-700 RPM
VGD10IA-000
1,900
25-150
3
1,000-6,000
30
10” High Lift 400-700 RPM
VGD10HA-000
2,100
30-175
3
1,000-6,500
40
12” Regular Lift 400-700 RPM
VGD12RA-000
1,800
15-75
4.25
1,000-6,000
20
12” Intermediate Lift 400-700 RPM
VGD12IA-000
2,000
30-150
4.25
2,000-7,000
30
12” High Lift 400-700 RPM
VGD12HA-000
2,200
50-200
4.25
2,000-9000
40
16” Regular Lift 400-700 RPM
VGD16RA-000
2,500
30-175
4.25
3,000-10,000
25
16” High Lift 400-700 RPM
VGD16HA-000
2,800
50-300
5.25
4,000-12,000
30
Standard Options & Accessories
Custom pump base plate(s)
Discharge adapters
Stainless steel wetted parts
Electrical control panels
