Crisafulli Diesel PTO Power Unit - Trailer Mounted



Diesel-Powered

 diesel PTO power unit

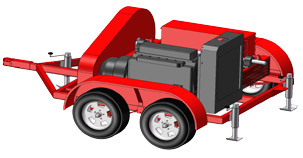

Description: The Crisafulli Diesel PTO power unit has an industrial duty diesel engine with an extended exhaust stack and rain cap mounted on an industrial duty skid or trailer, speed reduction, (540 RPM resultant speed if not specified otherwise), safety guard, ball hitch, hitch jack, power shaft and auxiliary pump hitch plate.

Battery, emergency safety engine shutdown system and fuel tank for 10 hours of continuous operation are included.

The diesel PTO power unit is designed for use with any standard Crisafulli PTO powered trailer pump.


Performance Range: horsepower of 25-250 HP.

NOTE:  the diesel PTO power unit trailer is not DOT approved for travel on public roads.



 * Industrial Duty Diesel Engine
 * Heavy Duty Trailer
 * Extended Exhaust w/ Rain Cap  * Speed Reduction w/ Safety Guard
 *Safety Shutdown System
  * PTO Output
 * 10 Hour Fuel Reservoir
  * Stabilizer Jacks Included
 Model/
Part #
  Horsepower
(HP)		 PTO
SPEED
(RPM)		 Weight
Estimated
-Lbs
PUDP25T 25  540/1000 1,400
 PUDP50T 50  540/1000 1,600
 PUDP75T 75 540/1000 2,000
PUDP110T  110  540/1000 2,500
PUDP150T 150   540/1000 3,400
PUDP200T 200  540/1000 5,000
PUDP250T 250 540/1000 5,200
                                         Standard Options and Accessories
Electric Brakes (per axle) Sound Attenuated or Weather Enclosures
 Optional Hitch Configurations DOT Light Package
 8 GPM Auxiliary Hydraulic Circuit Roll-over Protection System (ROPS)
*Power Unit will meet or exceed stated HP for continuous operations at rated RPM
