Crisafulli Floating Pumps



Our floating pumps and platforms are all custom engineered, rugged & versatile.

SolidWorks drawing of Crisafulli Floating Pump

SRS Crisafulli's Integrated Product Solutions - To remove water, soft and abrasive material, sludges, and slurries from Industrial, Municipal, Agricultural, and Government Lagoons, Ponds, Lakes, Canals, and flooded and flood threatened areas. And to irrigate farms and ranches.

Get a FREE Consultation  Let our Application Engineers help you select the best floating pump to achieve your pumping goals. Phone 1-888-817-7011.

floating pump

floating pump

floating pump

Crisafulli Floating Platform with Axial Flow Pump

floating pump

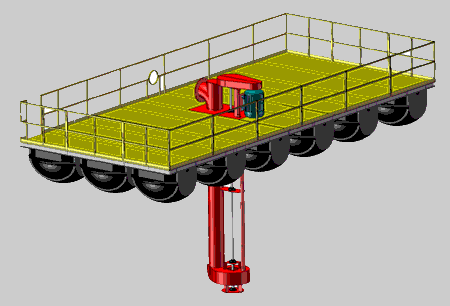

Crisafulli Floating Platform with Crisafulli Vertical Pump

Features - Electric Floating Pumps
Width 7' (standard) to 16'
Length 7' (standard) to 45'
Flowrate 100 to 12,000 U.S. GPM
Pressure 5' to 200' TDH
Pump Bearing frame mounted
Materials of construction A36 mild carbon steel (standard)
Pump discharge 150 lbs flanged sideout radial
Frame A36 mild carbon steel with 4 channel iron beams, 2 channel iron cross beams, end caps, pump mount and 4 lifting lugs.
Motor ODP, TEFC, explosion proof or chem duty (please specify)
Power 230/460 volt, 3 phase, 60 cycle
Optional Features
Pump style Cantilevered vertical
Decking Expanded metal, bar grating (steel or fiberglass)
Handrailing As per O.S.H.A. specs with toeplate and accessways
Controls Control panels, float switches and control cable
Discharge pipe Integral floating discharge pipeline
Cabling Cable anchoring systems
Piping Manifolds, valves, gauges, test lines


floating pump

floating pump
Front and side views - Crisafulli Electric Floating Pump
